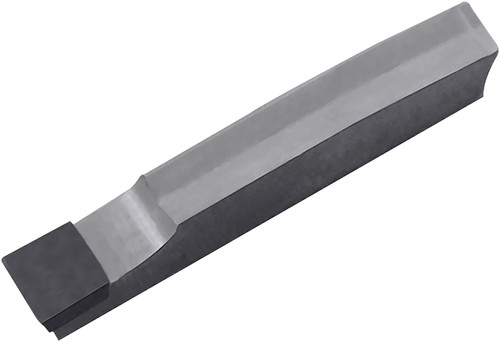

Kyocera GMN 3 KPD001 Grade PCD, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBR12550
$304.90
Kyocera GMN 3 KPD001 Grade PCD, 3.00mm Groove Width, Neutral Grooving Insert for Continuous and Finishing in (N) Non-Ferrous Metals and (S) Heat-Resistant Alloy

Specifications

Series
KGM
Unit of Measure
Metric
Material
PCD
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials
Corner Radius (Metric)
0.20
Grade
KPD001
Cutting Width
3 mm
Thickness (Metric)
4.30
Cutting Width (Decimal)
0.12
Style
GMN
Application
External Deep Grooving|External Grooving
Thickness (Decimal)
0.17
Insert Holding Method
Clamp
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Size
3
Old Material Number
8811307
ANSI Part Number
GMN3KPD001
ISO Part Number
GMN3
Rake
Positive
Number of Cutting Edges
1
Hand of Holder
Neutral
Cutting Range
Finishing
Full Radius
No
Usage Classification
Continuous
Corner Radius (Decimal)
0.01
Cutting Width Minimum (Decimal)
0.12
Cutting Width Minimum (Metric)
3
Cutting Width Maximum (Decimal)
0.12
Cutting Width Maximum (Metric)
3
Max Depth of Cut (Decimal)
0.79
Max Depth of Cut (Metric)
20
Kyocera GMN 3 KPD001 Grade PCD, Indexable Grooving Insert
$304.90
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
