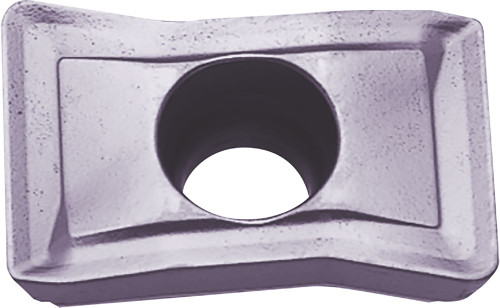

Kyocera GOMT 100308ERD PR1825 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLT00090
$27.36
Kyocera GOMT 100308ERD PR1825 Grade PVD Carbide, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel

Specifications

Series
MEY
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel|(P) Mold Steel
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
PR1825
Thickness
3.30 mm
Style
GOMT
Application
Deep Slotting, Drilling, Facing, Pocketing, Shouldering, Slotting
Thickness (Decimal)
0.13
Shape
Parallelogram
Insert Holding Method
Screw
Insert Length (Decimal)
0.42
Insert Length (Metric)
10.70
ANSI Part Number
GOMT100308ERDPR1825
ISO Part Number
GOMT100308ER-D
Rake
Positive
Number of Cutting Edges
2
Insert Size
100308
Chipbreaker
ER-D
Cutting Range
Roughing
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
