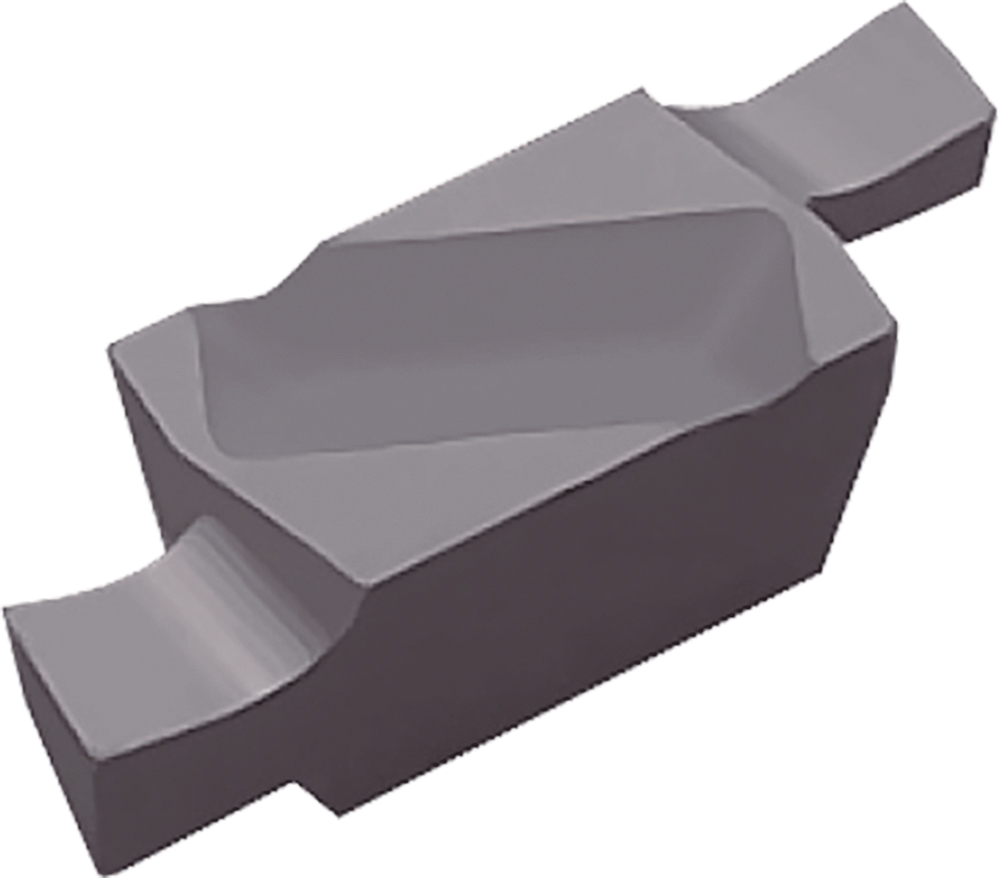

Kyocera GVF L350C PR930 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKT08605
$96.61
Kyocera GVF L350C PR930 Grade PVD Carbide, 3.50mm Groove Width, Left-Hand Grooving Insert for Light Interruption and Finishing-Medium in (P) Steel and (M) Stainless Steel

Specifications

Series
GFV
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.40
Corner Radius (Fractional)
1/64
Grade
PR930
Cutting Width
3.50 mm
Thickness (Metric)
7
Cutting Width (Decimal)
0.14
Style
GVF
Application
Face Grooving
Chip Breaker Type
C
Thickness (Decimal)
0.28
Insert Holding Method
Clamp
Insert Length (Decimal)
1.06
Insert Length (Metric)
27
Size
350
Old Material Number
8811413
ANSI Part Number
GVFL350CPR930
ISO Part Number
GVFL350-040C
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Left
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Cutting Width Minimum (Decimal)
0.14
Cutting Width Minimum (Metric)
3.50
Cutting Width Maximum (Decimal)
0.14
Cutting Width Maximum (Metric)
3.50
Max Depth of Cut (Decimal)
0.27
Max Depth of Cut (Metric)
6.80
Pack quantity
10
Kyocera GVF L350C PR930 Grade PVD Carbide, Indexable Grooving Insert
$96.61
