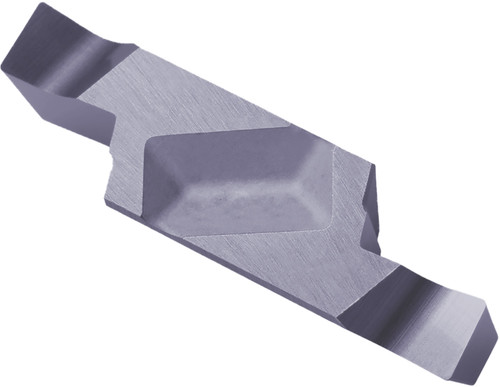

Kyocera Grooving Insert GVFL600040C PR1225: 6.00mm Width, LH, 2 Cutting Edges, 0.40mm Nose Radius, TKE15859

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE15859
$96.61

Groove, part off and profile with this PR1225 grade grooving insert.

Kyocera Series GFV tools are made for non-ferrous metals and plastics.

  • Cutting width: 6.00mm
  • Hand direction: Left
  • Corner radius: 0.40mm
  • Maximum depth of cut: 8.30mm
  • Chip breaker type: C
  • Insert grade: PR1225
  • Coating/finish: MEGACOAT
  • Material: Carbide
  • Workpiece material: Steel
  • ANSI designation: GVFL600040CPR1225

Kyocera part number TKE15859.

Specifications

Series
GFV
Unit of Measure
Metric
Material
Carbide
Coating/Finish
MEGACOAT
ISO Designation
GVFL600-040C
Corner Radius (Metric)
0.40
Corner Radius (Fractional)
1/64
Insert Thickness (Metric)
7.00
Cutting Width (Metric)
6.00
Insert Shape
Irregular
Cutting Width (Decimal)
0.2362
Insert Style
GVF
Machining Operations
Face Grooving
Chip Breaker Type
C
ANSI Designation
GVFL600040CPR1225
Insert Holding Method
Clamp
Insert Length (Decimal)
1.0630
Insert Length (Metric)
27.00
Insert Size
600040
Secondary Workpiece Material
Stainless Steel
Insert Grade
PR1225
Workpiece Material
Steel
Rake
Positive
Number of Cutting Edges
2
Hand Direction
Left
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Continuous
Cutting Width Minimum (Decimal)
0.2362
Cutting Width Minimum (Metric)
6.00
Cutting Width Maximum (Decimal)
0.2362
Cutting Width Maximum (Metric)
6.00
Maximum Depth of Cut (Decimal)
0.3268
Maximum Depth of Cut (Metric)
8.30
Pack quantity
10
Coating Process
PVD
Insert Thickness (Decimal)
0.2760
$96.61
