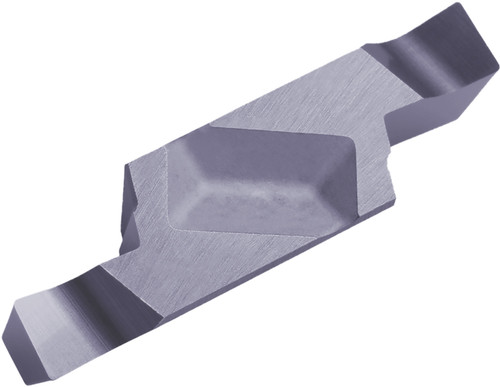

Kyocera Grooving Insert GVFR400020B PR1225: TKE15832

Kyocera Grooving Insert GVFR400020B PR1225, manufacturer part number TKE15832.

Specifications: Insert Thickness: 5.00 mm (0.1970 in); Corner Radius: 0.20 mm (0.0080 in); Cutting Width: 4.00 mm (0.1575 in); Insert Holding Method: Clamp; Insert Length: 20.00 mm (0.7874 in); Old Material Number: 8837193; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Medium-Roughing; Full Radius: No; Usage Classification: Continuous; Cutting Width Minimum: 4.00 mm (0.1575 in); Cutting Width Maximum: 4.00 mm (0.1575 in); Maximum Depth of Cut: 5.30 mm (0.2087 in); Insert Shape: Irregular; Insert Size: 400020; Insert Style: GVF; Hand Direction: Right; ANSI Designation: GVFR400020BPR1225; Chip Breaker Type: B; ISO Designation: GVFR400-020B; Machining Operations: Face Grooving; Insert Grade: PR1225; Workpiece Material: Steel, Stainless Steel; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT. Series: GFV. Unit of measure: Metric.
