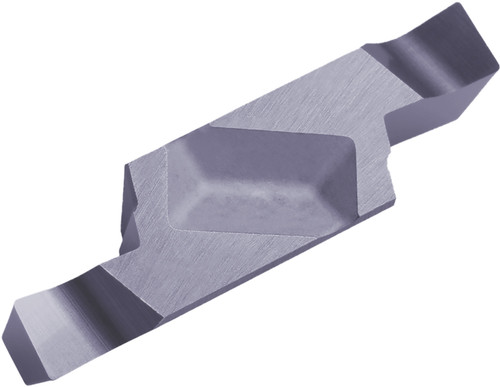

Kyocera GVF R450040C PR1225 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE15852
$96.61
Kyocera GVF R450040C PR1225 Grade PVD Carbide, 4.50mm Groove Width, Right-Hand Grooving Insert for Continuous and Medium-Roughing in (P) Steel and (M) Stainless Steel

Specifications

Series
GFV
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.40
Corner Radius (Fractional)
1/64
Grade
PR1225
Cutting Width
4.50 mm
Thickness (Metric)
7
Cutting Width (Decimal)
0.18
Style
GVF
Application
Face Grooving
Chip Breaker Type
C
Thickness (Decimal)
0.28
Insert Holding Method
Clamp
Insert Length (Decimal)
1.06
Insert Length (Metric)
27
Size
450040
Old Material Number
8837197
ANSI Part Number
GVFR450040CPR1225
ISO Part Number
GVFR450-040C
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Right
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Continuous
Cutting Width Minimum (Decimal)
0.18
Cutting Width Minimum (Metric)
4.50
Cutting Width Maximum (Decimal)
0.18
Cutting Width Maximum (Metric)
4.50
Max Depth of Cut (Decimal)
0.27
Max Depth of Cut (Metric)
6.80
Pack quantity
10
