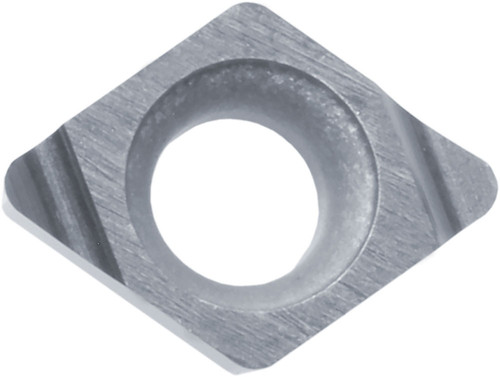

Kyocera Turning Insert JCET110905RFSF TN60: TSJ07685

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSJ07685
$27.50

Kyocera ISOI turning insert for steel, 0.1380 in (3.50 mm) IC, 70 degree diamond shape, positive rake, 2 cutting edges, finishing cutting range, screw or clamp insert holding, right hand. Cermet, uncoated. Manufacturer part number TSJ07685.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Cermet
Coating/Finish
Uncoated
Machining Operations
Back Boring, Boring, Internal Facing
Corner Radius (Decimal)
0.0080
Included Angle
70
ANSI Designation
JCET110905RFSFTN60
Insert Style
JCET
Insert Grade
TN60
Insert Shape
70 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
110905
Workpiece Material
Steel
IC Size (Decimal)
0.1380
Rake
Positive
Insert Thickness (Metric)
1.40
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Insert Thickness (Decimal)
0.0550
ISO Designation
JCET030102R-FSF
Cutting Range
Finishing
Usage Classification
Continuous
IC Size (Metric)
3.50
Chip Breaker Type
FSF
Pack quantity
10
