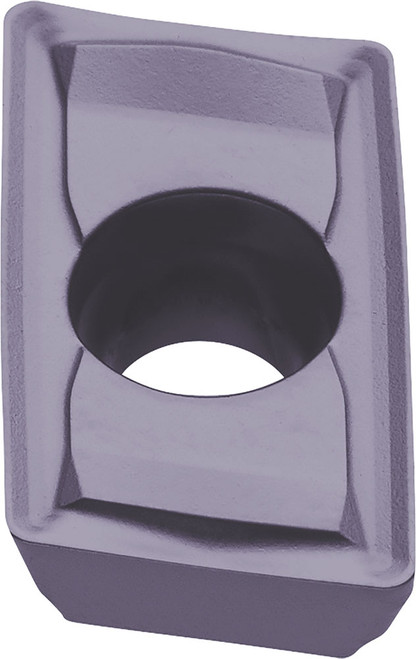

Kyocera JOMT 100308ERD PR1810 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLS00068
$27.36
Kyocera JOMT 100308ERD PR1810 Grade PVD Carbide, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron

Specifications

Series
MEY
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(K) Gray Cast Iron|(K) Nodular Cast Iron
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
PR1810
Thickness
3.18 mm
Style
JOMT
Application
Deep Slotting, Drilling, Facing, Pocketing, Shouldering, Slotting
Thickness (Fractional)
1/8
Shape
Parallelogram
Insert Holding Method
Screw
Insert Length (Decimal)
0.40
Insert Length (Metric)
10.20
ANSI Part Number
JOMT100308ERDPR1810
ISO Part Number
JOMT100308ER-D
Rake
Positive
Number of Cutting Edges
2
Insert Size
100308
Chipbreaker
ER-D
Cutting Range
Roughing
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
