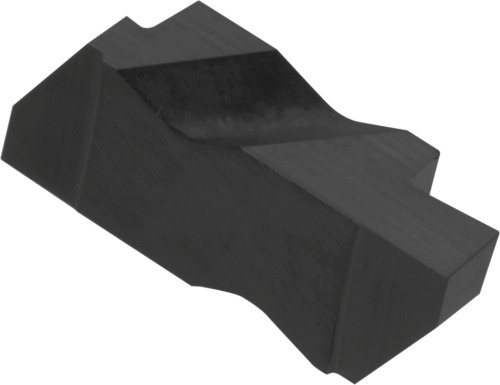

Kyocera KCG 2125L A65 Grade Uncoated Ceramic, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TCR89111
$41.89
Kyocera KCG 2125L A65 Grade Uncoated Ceramic, 0.1252" Groove Width, Left-Hand Grooving Insert for Continuous and Finishing in (K) Cast Iron and (H) Hardened Materials

Specifications

Series
CERA
Unit of Measure
Imperial
Material
Ceramic
Coating/Finish
Uncoated
Primary Workpiece Material
(K) Cast Iron
Corner Radius (Metric)
0.20
Grade
A65
Cutting Width
0.13 Inch
Thickness (Metric)
5.56
Cutting Width (Metric)
3.18
Style
KCG
Application
External Grooving|Internal Large Diameter Shallow Grooving
Thickness (Fractional)
7/32
Insert Holding Method
Clamp
Insert Length (Decimal)
0.51
Insert Length (Metric)
12.88
Size
2125
Old Material Number
8849909
ANSI Part Number
KCG2125LA65
ISO Part Number
KCG2125L
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Left
Cutting Range
Finishing
Full Radius
No
Usage Classification
Continuous
Corner Radius (Decimal)
0.01
Cutting Width Minimum (Decimal)
0.13
Cutting Width Minimum (Metric)
3.18
Cutting Width Maximum (Decimal)
0.13
Cutting Width Maximum (Metric)
3.18
Max Depth of Cut (Decimal)
0.11
Max Depth of Cut (Metric)
2.80
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Kyocera KCG 2125L A65 Grade Uncoated Ceramic, Indexable Grooving Insert
$41.89
