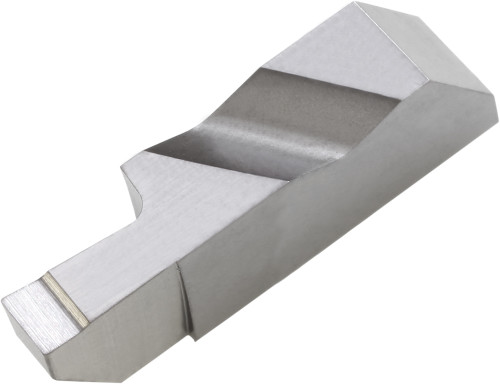

Kyocera KCGDP 3094R TN60 Grade Uncoated Cermet, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-8867849
$40.63
Kyocera KCGDP 3094R TN60 Grade Uncoated Cermet, 0.0940" Groove Width, Right-Hand Grooving Insert for Continuous and Finishing in (P) Steel

Specifications

Series
CERA
Unit of Measure
Imperial
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.20
Grade
TN60
Cutting Width
0.09 Inch
Thickness (Metric)
8.74
Cutting Width (Metric)
2.39
Style
KCGDP
Application
External Grooving|Internal Large Diameter Shallow Grooving
Thickness (Decimal)
0.34
Insert Holding Method
Clamp
Insert Length (Decimal)
0.89
Insert Length (Metric)
22.48
Size
3094
Old Material Number
8867849
ANSI Part Number
KCGDP3094RTN60
ISO Part Number
KCGDP3094R
Rake
Positive
Number of Cutting Edges
1
Hand of Holder
Right
Cutting Range
Finishing
Full Radius
No
Usage Classification
Continuous
Corner Radius (Decimal)
0.01
Cutting Width Minimum (Decimal)
0.09
Cutting Width Minimum (Metric)
2.39
Cutting Width Maximum (Decimal)
0.09
Cutting Width Maximum (Metric)
2.39
Max Depth of Cut (Decimal)
0.25
Max Depth of Cut (Metric)
6.35
Pack quantity
10
