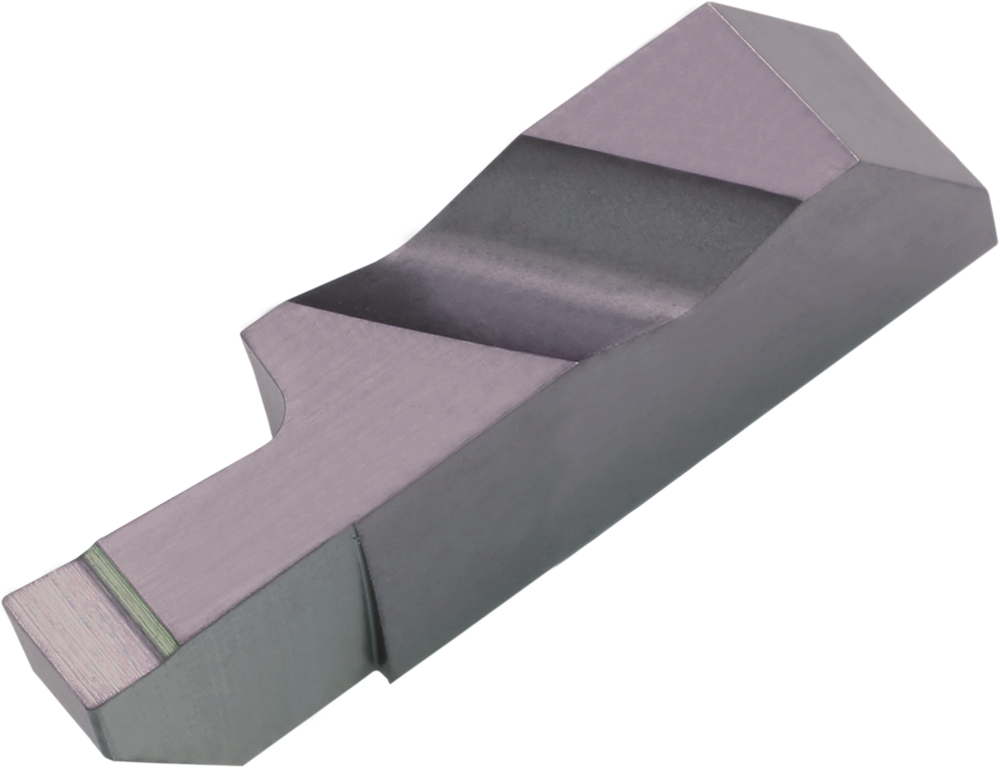

Kyocera KCGDP 3125R PR1625 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-8868202
$44.25
Kyocera KCGDP 3125R PR1625 Grade PVD Carbide, 0.1252" Groove Width, Right-Hand Grooving Insert for Light Interruption and Finishing-Medium in (P) Steel and (M) Stainless Steel

Specifications

Series
CERA
Unit of Measure
Imperial
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.20
Grade
PR1625
Cutting Width
0.13 Inch
Thickness (Metric)
8.74
Cutting Width (Metric)
3.18
Style
KCGDP
Application
External Grooving|Internal Large Diameter Shallow Grooving
Thickness (Decimal)
0.34
Insert Holding Method
Clamp
Insert Length (Decimal)
0.89
Insert Length (Metric)
22.48
Size
3125
Old Material Number
8868202
ANSI Part Number
KCGDP3125RPR1625
ISO Part Number
KCGDP3125R
Rake
Positive
Number of Cutting Edges
1
Hand of Holder
Right
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Corner Radius (Decimal)
0.01
Cutting Width Minimum (Decimal)
0.13
Cutting Width Minimum (Metric)
3.18
Cutting Width Maximum (Decimal)
0.13
Cutting Width Maximum (Metric)
3.18
Max Depth of Cut (Decimal)
0.25
Max Depth of Cut (Metric)
6.35
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Kyocera KCGDP 3125R PR1625 Grade PVD Carbide, Indexable Grooving Insert
$44.25
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
