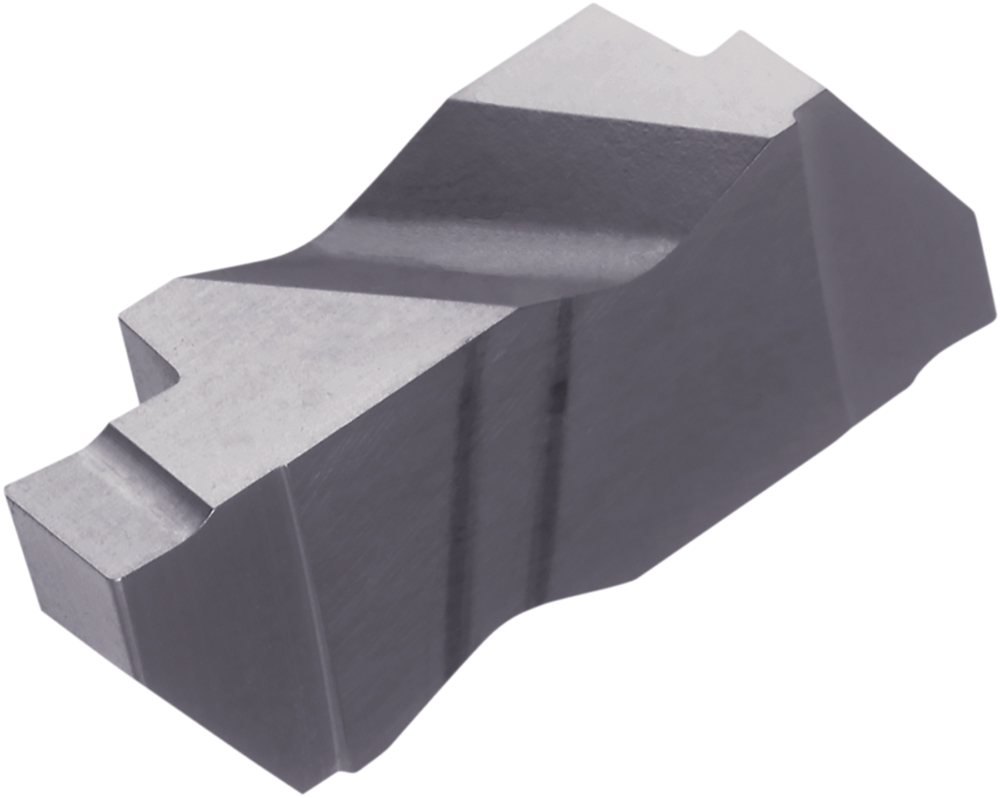

Kyocera KCGP 2031R PR930 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKT89090
$48.28
Kyocera KCGP 2031R PR930 Grade PVD Carbide, 0.0311" Groove Width, Right-Hand Grooving Insert for Light Interruption and Finishing-Medium in (P) Steel and (M) Stainless Steel

Specifications

Series
CERA
Unit of Measure
Imperial
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.08
Grade
PR930
Cutting Width
0.03 Inch
Thickness (Metric)
5.56
Cutting Width (Metric)
0.79
Style
KCGP
Application
External Grooving|Internal Large Diameter Shallow Grooving
Thickness (Fractional)
7/32
Insert Holding Method
Clamp
Insert Length (Decimal)
0.51
Insert Length (Metric)
12.88
Size
2031
Old Material Number
8849921
ANSI Part Number
KCGP2031RPR930
ISO Part Number
KCGP2031R
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Right
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Corner Radius (Decimal)
0.003
Cutting Width Minimum (Decimal)
0.03
Cutting Width Minimum (Metric)
0.79
Cutting Width Maximum (Decimal)
0.03
Cutting Width Maximum (Metric)
0.79
Max Depth of Cut (Decimal)
0.05
Max Depth of Cut (Metric)
1.27
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Kyocera KCGP 2031R PR930 Grade PVD Carbide, Indexable Grooving Insert
$48.28
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
