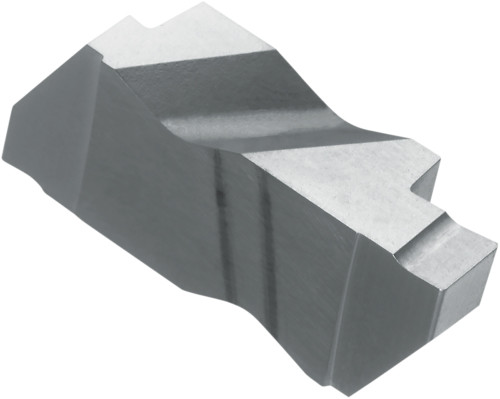

ANSI Designation
KCGP2041LTN60
Corner Radius (Metric)
0.08
ISO Designation
KCGP2041L
Cutting Width (Decimal)
0.0409
Insert Thickness (Fractional)
7/32
Cutting Width (Metric)
1.04
Insert Shape
Parallelogram
Insert Thickness (Metric)
5.56
Insert Holding Method
Clamp
Insert Length (Decimal)
0.5400
Insert Length (Metric)
13.72
Secondary Workpiece Material
Stainless Steel
Machining Operations
External Grooving, Internal Large Diameter Shallow Grooving
Number of Cutting Edges
2
Usage Classification
Continuous
Corner Radius (Decimal)
0.0030
Cutting Width Minimum (Decimal)
0.0409
Cutting Width Minimum (Metric)
1.04
Cutting Width Maximum (Decimal)
0.0409
Cutting Width Maximum (Metric)
1.04
Maximum Depth of Cut (Decimal)
0.0500
Maximum Depth of Cut (Metric)
1.27
