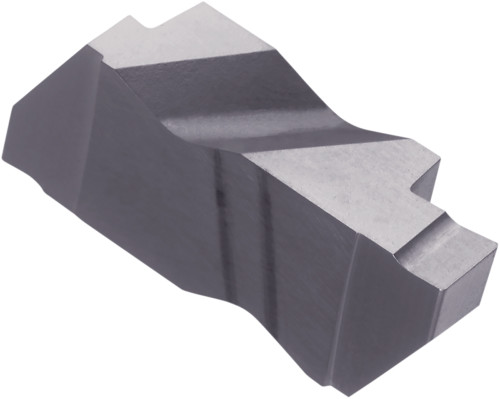

Kyocera KCGP 3094L PR1215 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-8850632
$50.71
Kyocera KCGP 3094L PR1215 Grade PVD Carbide, 0.0941" Groove Width, Left-Hand Grooving Insert for Continuous and Finishing in (P) Steel and (M) Stainless Steel

Specifications

Series
CERA
Unit of Measure
Imperial
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.20
Grade
PR1215
Cutting Width
0.09 Inch
Thickness (Metric)
8.74
Cutting Width (Metric)
2.39
Style
KCGP
Application
External Grooving|Internal Large Diameter Shallow Grooving
Thickness (Decimal)
0.34
Insert Holding Method
Clamp
Insert Length (Decimal)
0.89
Insert Length (Metric)
22.48
Size
3094
Old Material Number
8850632
ANSI Part Number
KCGP3094LPR1215
ISO Part Number
KCGP3094L
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Left
Cutting Range
Finishing
Full Radius
No
Usage Classification
Continuous
Corner Radius (Decimal)
0.01
Cutting Width Minimum (Decimal)
0.09
Cutting Width Minimum (Metric)
2.39
Cutting Width Maximum (Decimal)
0.09
Cutting Width Maximum (Metric)
2.39
Max Depth of Cut (Decimal)
0.15
Max Depth of Cut (Metric)
3.80
Pack quantity
10
