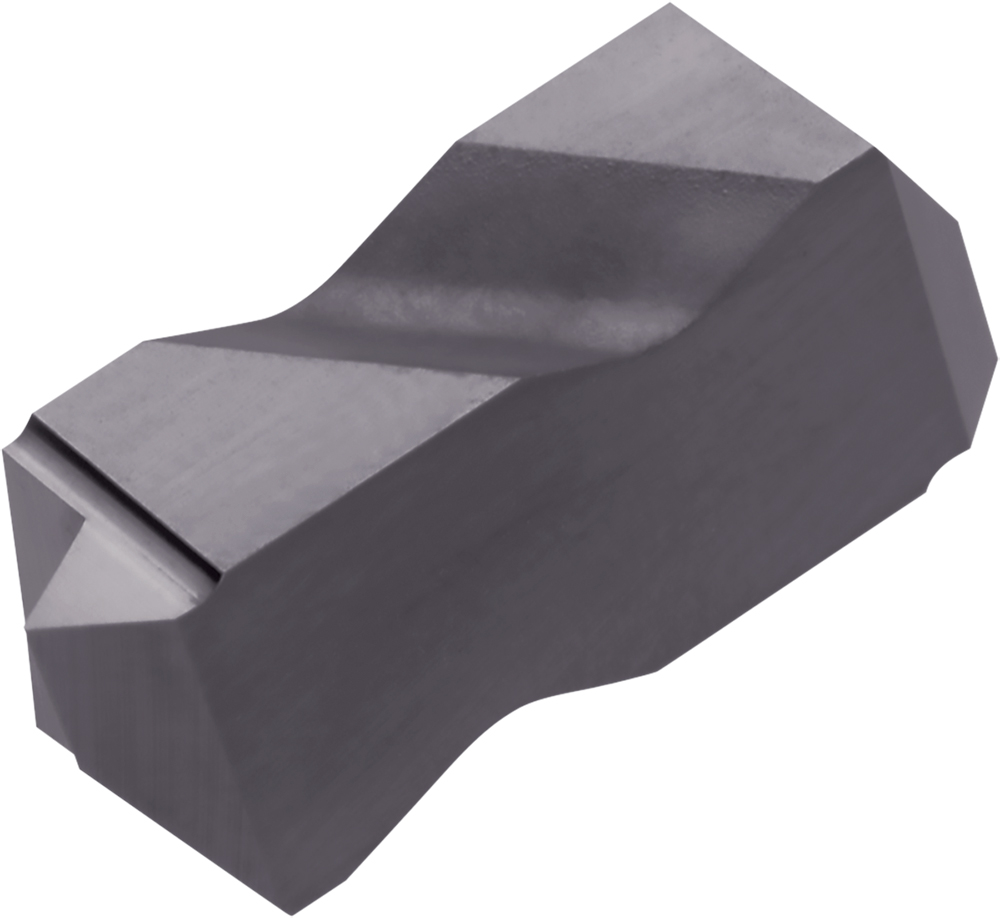

Kyocera KCTP 2R PR1215 Grade PVD Carbide, Indexable Threading Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-8850698
$49.71
Kyocera KCTP 2R PR1215 Grade PVD Carbide, External & Internal, 60 Degree Partial Profile, Right-Hand Threading Insert for Metric (M), Unified (UN) Threads

Specifications

Series
CERA
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Grade
PR1215
Style
KCTP
Application
External Threading, Internal Threading
Thread Standard
Metric (M)|Unified (UN)
Insert Holding Method
Clamp
Thread Type
External & Internal
Size
2
Old Material Number
8850698
ANSI Part Number
KCTP2RPR1215
ISO Part Number
KCTP2R
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Corner Radius (Decimal)
0.004
Thickness (Fractional)
7/32
Usage Classification
Continuous
Thread Profile Type
60 Degree Partial Profile
Thread Pitch (TPI)
External UN: 8-36, Internal UN:7-20
Thread Pitch (mm)
External M: 0.75-3.0, Internal M: 1.5-3.5
Pack quantity
10
Kyocera KCTP 2R PR1215 Grade PVD Carbide, Indexable Threading Insert
$49.71
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
