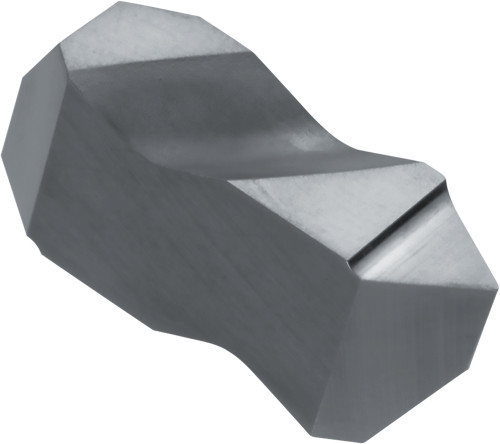

Kyocera KCTP 3L TN60 Grade Uncoated Cermet, Indexable Threading Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-8864059
$42.70
Kyocera KCTP 3L TN60 Grade Uncoated Cermet, External & Internal, 60 Degree Partial Profile, Left-Hand Threading Insert for Metric (M), Unified (UN) Threads

Specifications

Series
CERA
Unit of Measure
Imperial
Cutting Direction
Left
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Grade
TN60
Thickness
0.34 Inch
Style
KCTP
Application
External Threading, Internal Threading
Thread Standard
Metric (M)|Unified (UN)
Insert Holding Method
Clamp
Thread Type
External & Internal
Size
3
Old Material Number
8864059
ANSI Part Number
KCTP3LTN60
ISO Part Number
KCTP3L
Corner Radius (Metric)
0.18
Number of Cutting Edges
2
Corner Radius (Decimal)
0.01
Usage Classification
Continuous
Thread Profile Type
60 Degree Partial Profile
Thread Pitch (TPI)
External UN: 6-20, Internal UN:5-12
Thread Pitch (mm)
External M: 1.5-4.0, Internal M: 2.25-5.0
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Kyocera KCTP 3L TN60 Grade Uncoated Cermet, Indexable Threading Insert
$42.70
