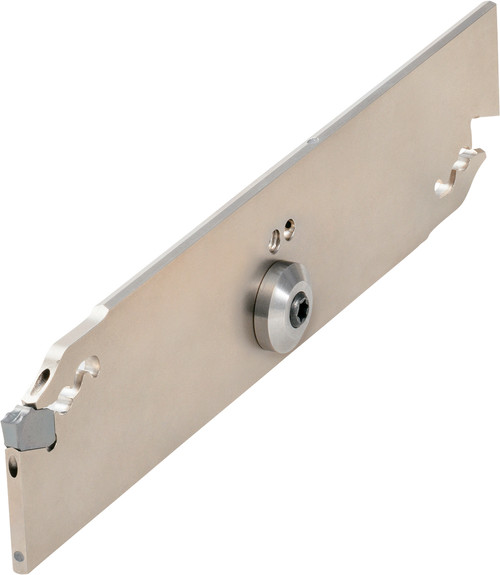

Kyocera KPKB 325JCT, Cut-Off Blade

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THP06861
$296.74
Kyocera KPKB325JCT, Neutral Coolant-Through Cut-Off Blade with a 120.00mm Maximum Cut-Off Diameter for Cut-Off Applications

Specifications

Series
KPKJ
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Steel
Style
KPKB-JCT
Application
Cut-Off
Insert Holding Method
Self-Clamp
Coolant Through
Yes
Old Material Number
8867826
ANSI Part Number
KPKB325JCT
ISO Part Number
KPKB32-5JCT
Material Group / Grade
GR99
Coolant Pressure Resistance (psi)
1,015
Cutting Width (Decimal)
0.19 - 0.20
Cutting Width (Metric)
4.80 - 5
Cutting Width Minimum (Decimal)
0.19
Cutting Width Minimum (Metric)
4.80
Cutting Width Maximum (Decimal)
0.20
Maximum Cut-Off Diameter (Decimal)
4.72
Cut-Off Diameter
120 mm
Max. Cutting Width
5 mm
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KPK-Series_Cut-Off_Solutions.pdf
