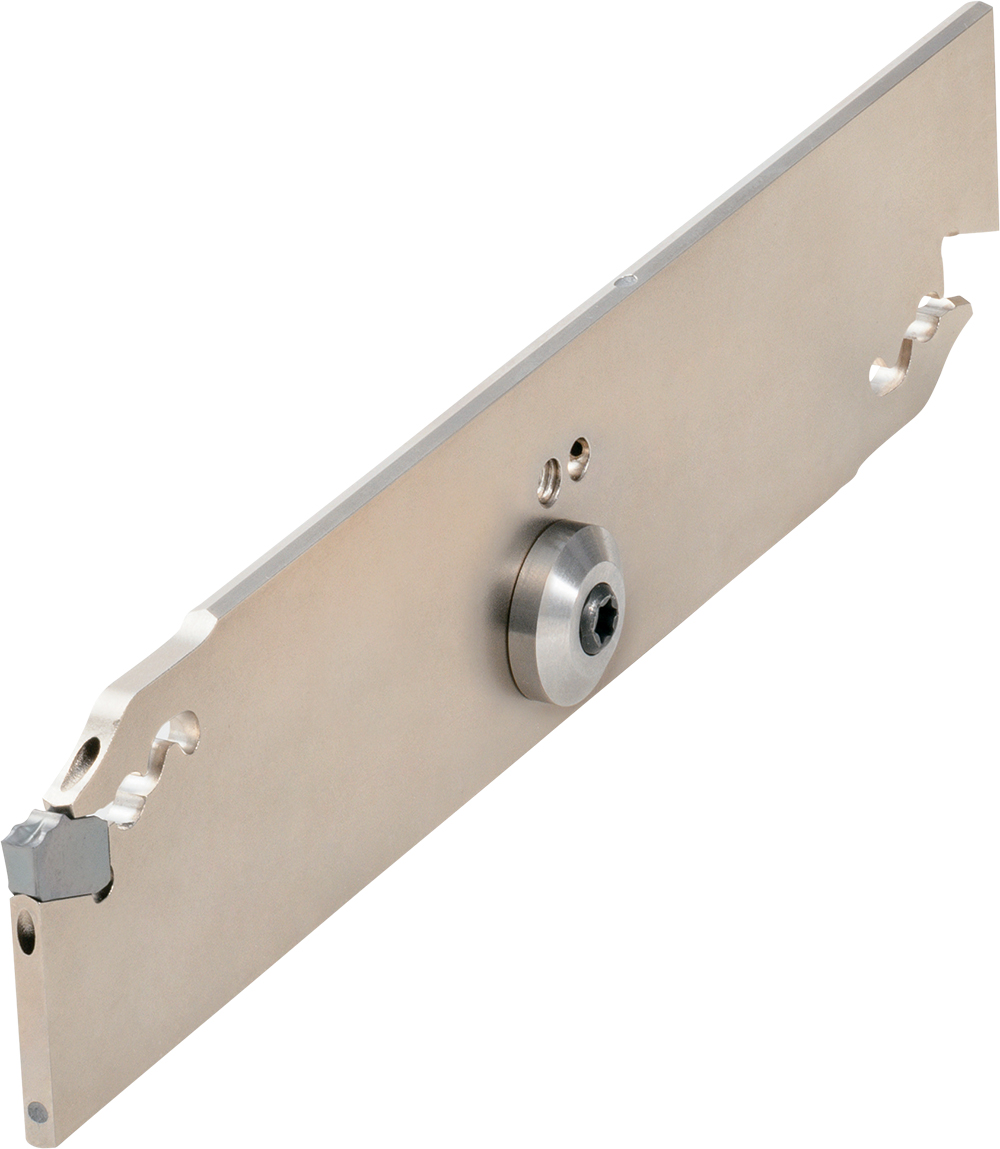

Kyocera KPKB26-3JCT, Cut-Off Blade

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THP06798
$266.30
Kyocera KPKB26-3JCT, Neutral, Cut-Off Blade with a 75.00mm Maximum Cut-Off Diameter for Cut-Off Applications

Specifications

Series
KPKJ
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Steel
Style
KPKB-JCT
Application
Cut-Off
Insert Holding Method
Self-Clamp
Coolant Through
Yes
Old Material Number
8865585
ANSI Part Number
KPKB263JCT
ISO Part Number
KPKB26-3JCT
Material Group / Grade
GR99
Coolant Pressure Resistance (psi)
1,015
Cutting Width (Decimal)
0.12
Cutting Width (Metric)
3
Cutting Width Minimum (Decimal)
0.12
Cutting Width Minimum (Metric)
3
Cutting Width Maximum (Decimal)
0.12
Maximum Cut-Off Diameter (Decimal)
2.95
Cut-Off Diameter
75 mm
Max. Cutting Width
3 mm
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KPK-Series_Cut-Off_Solutions.pdf
