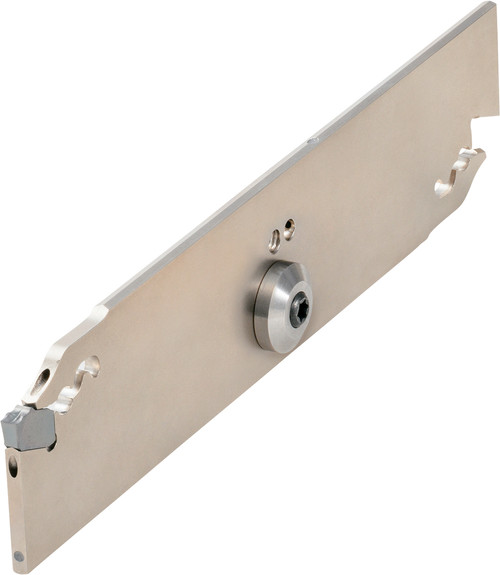

Kyocera KPKB32-2JCT, Cut-Off Blade

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THP06802
$296.74
Kyocera KPKB32-2JCT, Neutral, Cut-Off Blade with a 50.00mm Maximum Cut-Off Diameter for Cut-Off Applications

Specifications

Series
KPKJ
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Steel
Style
KPKB-JCT
Application
Cut-Off
Insert Holding Method
Self-Clamp
Coolant Through
Yes
Old Material Number
8865589
ANSI Part Number
KPKB322JCT
ISO Part Number
KPKB32-2JCT
Material Group / Grade
GR99
Coolant Pressure Resistance (psi)
1,015
Cutting Width (Decimal)
0.08 - 0.09
Cutting Width (Metric)
2 - 2.40
Cutting Width Minimum (Decimal)
0.08
Cutting Width Minimum (Metric)
2
Cutting Width Maximum (Decimal)
0.09
Maximum Cut-Off Diameter (Decimal)
1.97
Cut-Off Diameter
50 mm
Max. Cutting Width
2.40 mm
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KPK-Series_Cut-Off_Solutions.pdf
