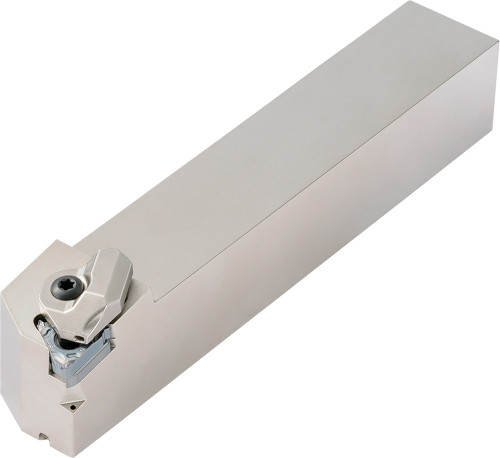

Kyocera KTNR 2525M16JCT, Coolant-Through External Threading Toolholder

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THC14653
$536.99
Kyocera KTNR 2525M16JCT, Coolant Through, Right-Hand, External Threading Toolholder with a 0.9843mm Shank Height and Compatible with 16ER… Inserts

Specifications

Series
LDTJ
Unit of Measure
Metric
Material
Steel
Shank Width
25
Style
KTN-JCT
Application
External Threading
Insert Holding Method
Clamp Set
Coolant Through
Yes
Thread Type
External
Old Material Number
8860669
ANSI Part Number
KTNR2525M16JCT
ISO Part Number
KTNR2525M-16JCT
Shank Height
25
Shank Width (Decimal)
0.98
Shank Width (Metric)
25
Shank Height (Decimal)
0.98
Shank Height (Metric)
25
Material Group / Grade
GR99
Coolant Pressure Resistance (psi)
up to 2,175
Hand of Holder
Right
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
