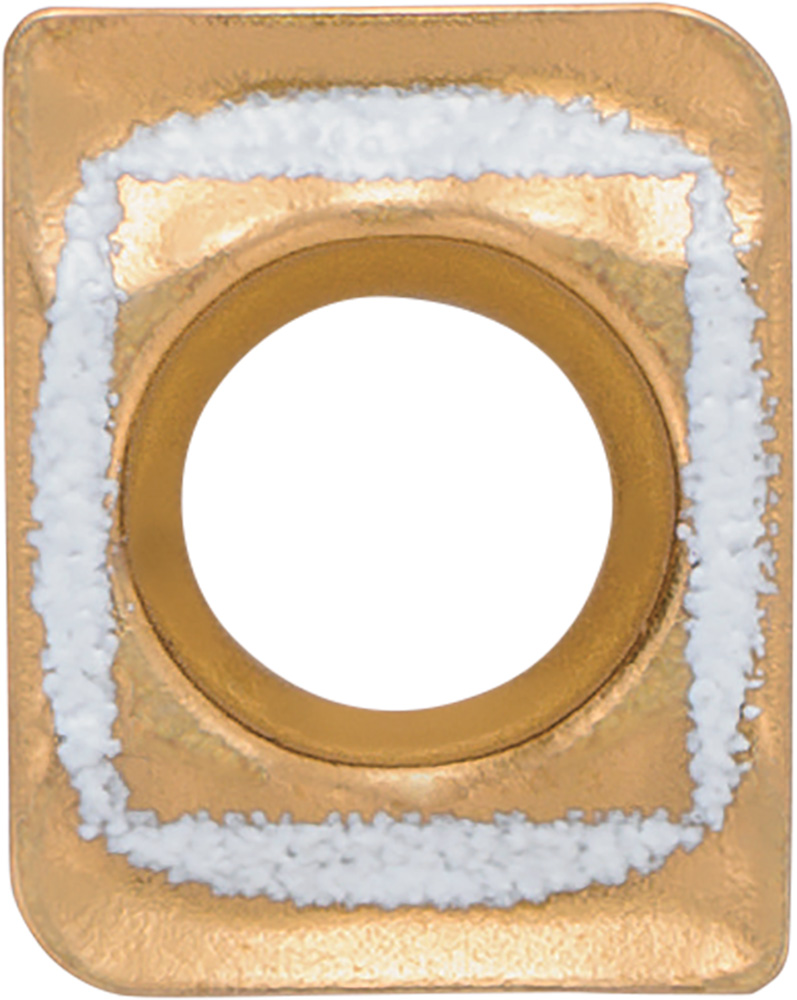

Kyocera LCMT 030203GME CA415D Grade CVD Carbide, Indexable Drilling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMG05630
$25.82
Kyocera LCMT 030203GME CA415D Grade CVD Carbide, Right-Hand Drilling Insert for (K) Cast Iron (DRV Magic Drill)

Specifications

Series
DRV
Unit of Measure
Fractional
Cutting Direction
Right
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Type
Magic Drill
Corner Radius (Metric)
0.30
Grade
CA415D
Thickness (Metric)
1.98
Thickness
5/64 Inch
Style
LCMT
Application
Drilling
Chip Breaker Type
GM-E
Shape
Irregular
Insert Holding Method
Screw
Insert Length (Decimal)
0.22
Insert Length (Metric)
5.54
Size
030203
Old Material Number
8861045
ANSI Part Number
LCMT030203GMECA415D
ISO Part Number
LCMT030203-GM-E
Rake
Positive
Number of Cutting Edges
2
Corner Radius (Decimal)
0.01
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRV_Magic_Drill.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
