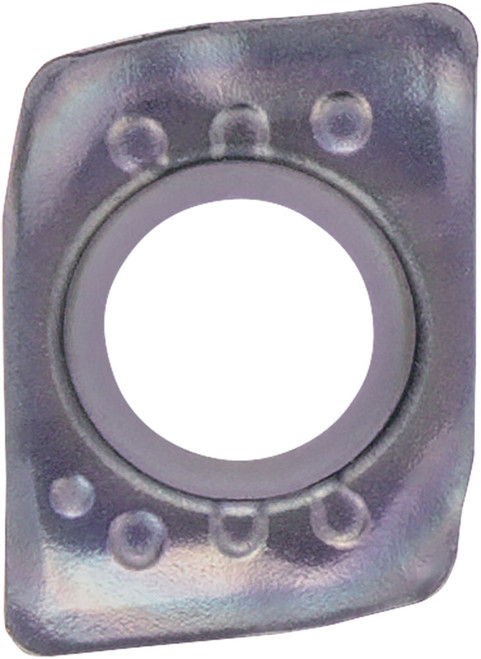

Kyocera LCMT 030205SMI PR1535 Grade PVD Carbide, Indexable Drilling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC05636
$25.82
Kyocera LCMT 030205SMI PR1535 Grade PVD Carbide, Right-Hand Drilling Insert for (M) Stainless Steel, (P) Carbon/Alloy Steel, (P) Tool Steel, (K) Cast Iron (DRV Magic Drill)

Specifications

Series
DRV
Unit of Measure
Fractional
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel
Type
Magic Drill
Corner Radius (Metric)
0.50
Grade
PR1535
Thickness (Metric)
1.98
Thickness
5/64 Inch
Style
LCMT
Application
Drilling
Chip Breaker Type
SM-I
Shape
Irregular
Insert Holding Method
Screw
Insert Length (Decimal)
0.21
Insert Length (Metric)
5.37
Size
030205
Old Material Number
8861049
ANSI Part Number
LCMT030205SMIPR1535
ISO Part Number
LCMT030205-SM-I
Rake
Positive
Number of Cutting Edges
2
Corner Radius (Decimal)
0.02
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRV_Magic_Drill.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
Kyocera LCMT 030205SMI PR1535 Grade PVD Carbide, Indexable Drilling Insert
$25.82
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
