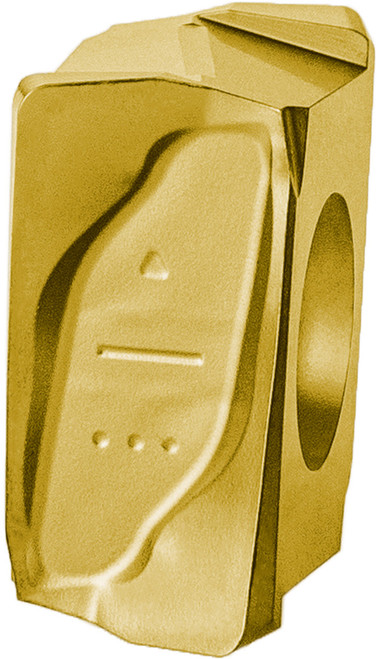

Kyocera LOGU 120616ERSM CA6535 Grade CVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMA40025
$49.17
Kyocera LOGU 120616ERSM CA6535 Grade CVD Carbide, 90 Degree Rectangle, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (M) Martensitic Stainless Steel, (S) Heat-Resistant Alloy

Specifications

Series
MA90
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(M) Martensitic Stainless Steel|(S) Heat-Resistant Alloy
Corner Radius
1.60 mm
Grade
CA6535
Thickness
9.92 mm
Style
LOGU
Application
Facing, Helical Milling, High Feed, Plunging, Pocketing, Ramping, Shouldering, Slotting
Thickness (Decimal)
0.39
Shape
90 Degree Rectangle
Insert Holding Method
Screw
Insert Length (Decimal)
0.52
Insert Length (Metric)
13.28
ANSI Part Number
LOGU120616ERSMCA6535
ISO Part Number
LOGU120616ER-SM
Rake
Positive
Number of Cutting Edges
4
Insert Size
1206
Chipbreaker
ER-SM
Cutting Range
Medium-Roughing
Corner Radius (Decimal)
0.06
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
Kyocera LOGU 120616ERSM CA6535 Grade CVD Carbide, Indexable Milling Insert
$49.17
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
