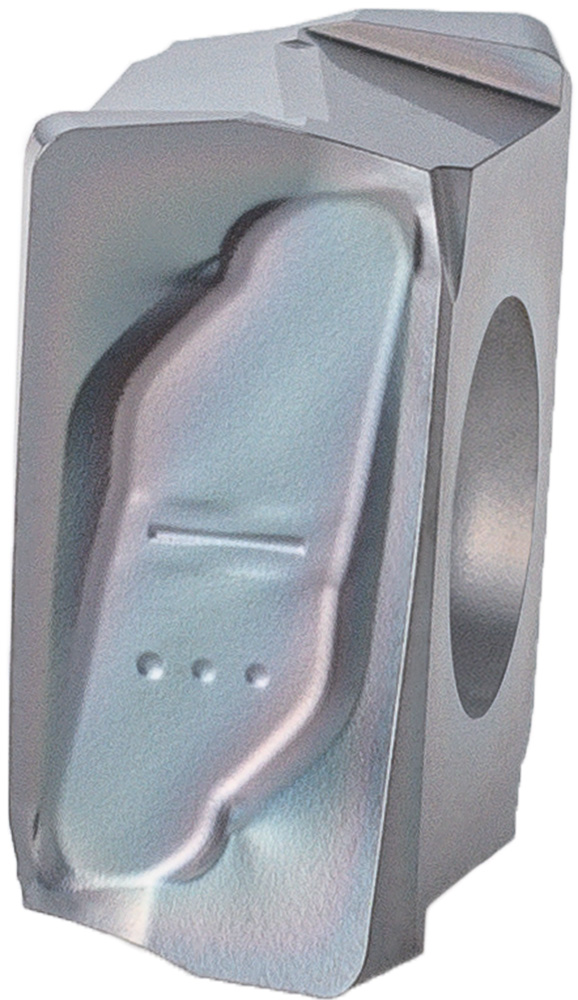

Kyocera LOGU 120624ERGM PR1825 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLT00015
$49.17
Kyocera LOGU 120624ERGM PR1825 Grade PVD Carbide, 90 Degree Rectangle, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel

Specifications

Series
MA90
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel|(P) Mold Steel
Corner Radius
2.40 mm
Grade
PR1825
Thickness
9.79 mm
Style
LOGU
Application
Facing, Helical Milling, High Feed, Plunging, Pocketing, Ramping, Shouldering, Slotting
Thickness (Decimal)
0.39
Shape
90 Degree Rectangle
Insert Holding Method
Screw
Insert Length (Decimal)
0.52
Insert Length (Metric)
13.28
ANSI Part Number
LOGU120624ERGMPR1825
ISO Part Number
LOGU120624ER-GM
Rake
Positive
Number of Cutting Edges
4
Insert Size
1206
Chipbreaker
ER-GM
Cutting Range
Medium-Roughing
Corner Radius (Decimal)
0.09
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
