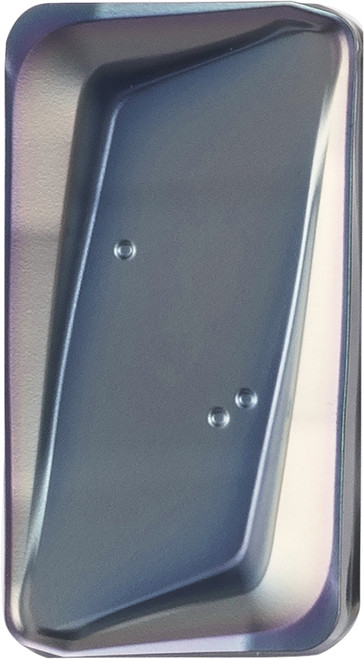

Kyocera LOGU 221616ERGM PR1535 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC40002
$68.48
Kyocera LOGU 221616ERGM PR1535 Grade PVD Carbide, Rectangle, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (K) Gray Cast Iron, (K) Nodular Cast Iron

Specifications

Series
MFLN
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Free-Cutting Steel|(P) Carbon/Alloy Steel|(K) Gray Cast Iron|(K) Nodular Cast Iron
Corner Radius
1.60 mm
Corner Radius (Fractional)
1/16
Grade
PR1535
Thickness
16.60 mm
Style
LOGU
Application
Facing, Helical Milling, High Feed, Plunging, Pocketing, Ramping, Shouldering, Slotting
Thickness (Decimal)
0.65
Shape
90 Degree Rectangle
Insert Holding Method
Screw
Insert Length (Decimal)
0.90
Insert Length (Metric)
22.80
Old Material Number
8864838
ANSI Part Number
LOGU221616ERGMPR1535
ISO Part Number
LOGU221616ER-GM
Rake
Positive
Number of Cutting Edges
4
Insert Size
2216
Chipbreaker
ER-GM
Cutting Range
Roughing
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFLN_Face_Mills_for_Heavy_Milling.pdf
