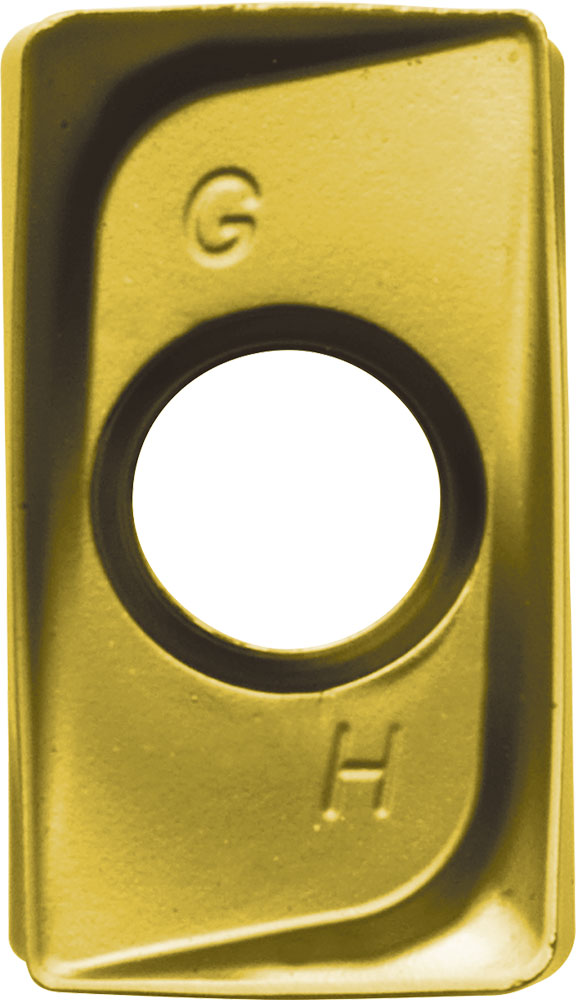

Kyocera LOMU 040410ERGM CA6535 Grade CVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMA40006
$36.94
Kyocera LOMU 040410ERGM CA6535 Grade CVD Carbide, 90 Degree Rectangle, Positive Rake Angle, Right Hand Milling Insert for Roughing in (M) Martensitic Stainless Steel, and (S) Heat-Resistant Alloy

Specifications

Series
MFHM
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(M) Martensitic Stainless Steel|(S) Heat-Resistant Alloy
Corner Radius
1 mm
Grade
CA6535
Thickness
4.40 mm
Style
LOMU
Application
Facing, Helical Milling, High Feed, Plunging, Pocketing, Ramping, Shouldering, Slotting
Thickness (Decimal)
0.17
Shape
90 Degree Rectangle
Insert Holding Method
Screw
Old Material Number
8866844
ANSI Part Number
LOMU040410ERGMCA6535
ISO Part Number
LOMU040410ER-GM
Rake
Positive
Number of Cutting Edges
4
Insert Size
040410
Chipbreaker
ER-GM
Cutting Range
Roughing
Corner Radius (Decimal)
0.04
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFH-MAX.pdf
Kyocera LOMU 040410ERGM CA6535 Grade CVD Carbide, Indexable Milling Insert
$36.94
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
