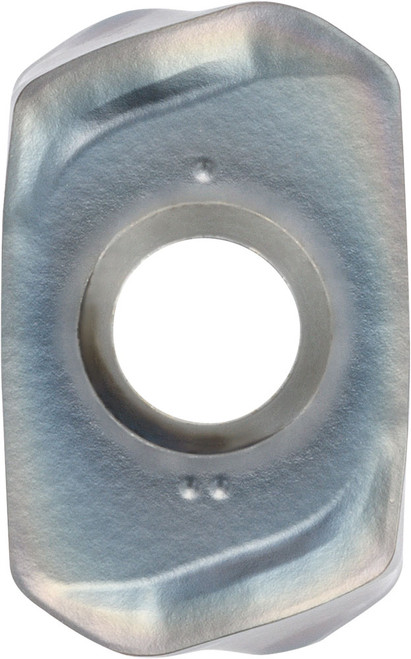

Kyocera LOMU 040410ERGM PR1525 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLB40152
$36.66
Kyocera LOMU 040410ERGM PR1525 Grade PVD Carbide, 90 Degree Rectangle, Positive Rake Angle, Right Hand Milling Insert for Roughing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, and (P) Mold Steel

Specifications

Series
MFHM
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Free-Cutting Steel|(P) Carbon/Alloy Steel|(P) Mold Steel
Corner Radius
1 mm
Grade
PR1525
Thickness
4.40 mm
Style
LOMU
Application
Facing, Helical Milling, High Feed, Plunging, Pocketing, Ramping, Shouldering, Slotting
Thickness (Decimal)
0.17
Shape
90 Degree Rectangle
Insert Holding Method
Screw
Old Material Number
8866842
ANSI Part Number
LOMU040410ERGMPR1525
ISO Part Number
LOMU040410ER-GM
Rake
Positive
Number of Cutting Edges
4
Insert Size
040410
Chipbreaker
ER-GM
Cutting Range
Roughing
Corner Radius (Decimal)
0.04
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFH-MAX.pdf
Kyocera LOMU 040410ERGM PR1525 Grade PVD Carbide, Indexable Milling Insert
$36.66
