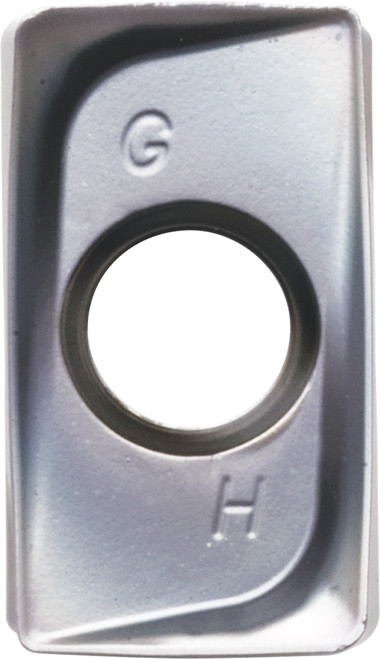

Kyocera LOMU 100408ERGH PR015S Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLJ59001
$28.81
Kyocera LOMU 100408ERGH PR015S Grade PVD Carbide, Indexable Milling Insert, Rectangle, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (H) Hardened Materials

Specifications

Series
MEW
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(H) Hardened Materials
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
PR015S
Thickness
4 mm
Style
LOMU
Application
Facing, Helical Milling, Shouldering, Slotting
Thickness (Decimal)
0.16
Shape
90 Degree Rectangle
Insert Holding Method
Screw
Old Material Number
8864928
ANSI Part Number
LOMU100408ERGHPR015S
ISO Part Number
LOMU100408ER-GH
Rake
Positive
Number of Cutting Edges
4
Insert Size
100408
Chipbreaker
ER-GH
Cutting Range
Roughing
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/M-Four_MEW_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR015S_Milling_Inserts.pdf
