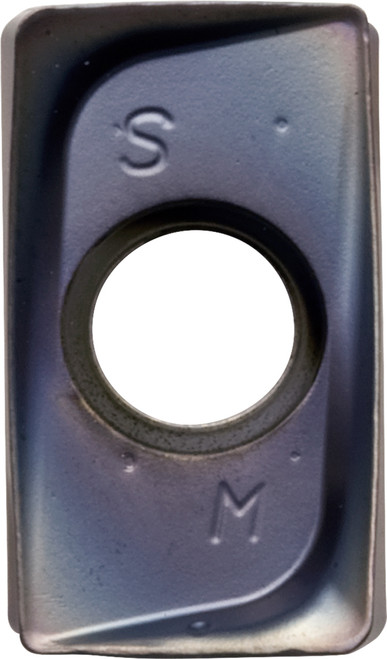

Kyocera LOMU 100408ERSM PR1835 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLU00075
$29.23
Kyocera LOMU 100408ERSM PR1835 Grade PVD Carbide, 90 Degree Rectangle, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (M) Austenitic Stainless Steel, (M) Precipitation Hardened Stainless Steel, (S) Titanium Alloy and (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Martensitic Stainless Steel

Specifications

Series
MEW
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Austenitic Stainless Steel|(M) Precipitation Hardened Stainless Steel|(S) Titanium Alloy
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
PR1835
Thickness
4 mm
Style
LOMU
Application
Facing, Helical Milling, Shouldering, Slotting
Thickness (Decimal)
0.16
Shape
90 Degree Rectangle
Insert Holding Method
Screw
ANSI Part Number
LOMU100408ERSMPR1835
ISO Part Number
LOMU100408ER-SM
Rake
Positive
Number of Cutting Edges
4
Insert Size
100408
Chipbreaker
ER-SM
Cutting Range
Roughing
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/M-Four_MEW_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
