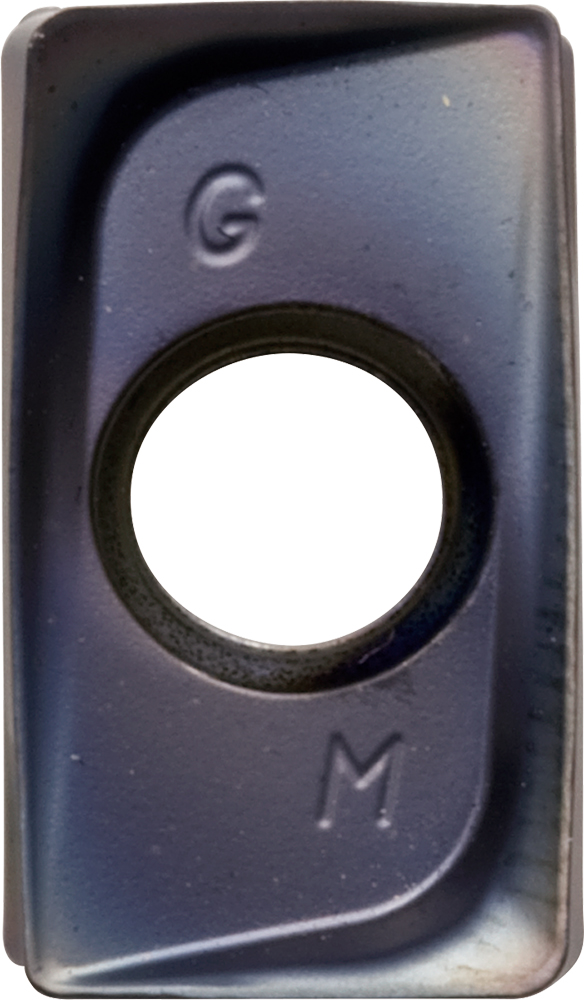

Kyocera LOMU 100416ERGM PR1825 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLT00079
$29.23
Kyocera LOMU 100416ERGM PR1825 Grade PVD Carbide, 90 Degree Rectangle, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel

Specifications

Series
MEW
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel|(P) Mold Steel
Corner Radius
1.60 mm
Corner Radius (Fractional)
1/16
Grade
PR1825
Thickness
4 mm
Style
LOMU
Application
Facing, Helical Milling, Shouldering, Slotting
Thickness (Decimal)
0.16
Shape
90 Degree Rectangle
Insert Holding Method
Screw
ANSI Part Number
LOMU100416ERGMPR1825
ISO Part Number
LOMU100416ER-GM
Rake
Positive
Number of Cutting Edges
4
Insert Size
100416
Chipbreaker
ER-GM
Cutting Range
Roughing
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/M-Four_MEW_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
