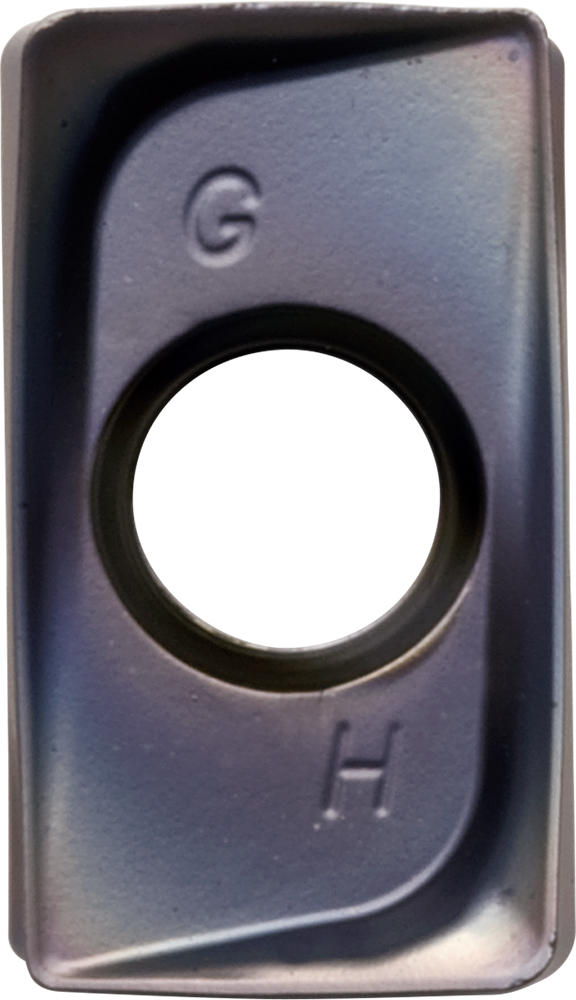

Kyocera LOMU 150508ERGH PR1825 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLT00082
$33.97
Kyocera LOMU 150508ERGH PR1825 Grade PVD Carbide, 90 Degree Rectangle, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel

Specifications

Series
MEW
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel|(P) Mold Steel
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
PR1825
Thickness
5.60 mm
Style
LOMU
Application
Facing, Helical Milling, Shouldering, Slotting
Thickness (Decimal)
0.22
Shape
90 Degree Rectangle
Insert Holding Method
Screw
ANSI Part Number
LOMU150508ERGHPR1825
ISO Part Number
LOMU150508ER-GH
Rake
Positive
Number of Cutting Edges
4
Insert Size
150508
Chipbreaker
ER-GH
Cutting Range
Roughing
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/M-Four_MEW_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
