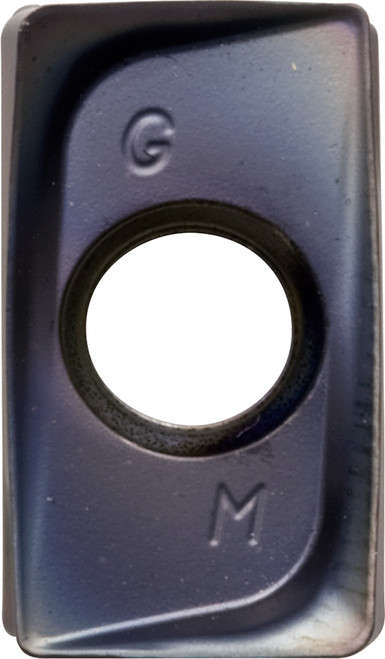

Kyocera LOMU 150508ERGM PR1535 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC04356
$33.97
Kyocera LOMU 150508ERGM PR1535 Grade PVD Carbide, Rectangle, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (M) Precipitation Hardened Stainless Steel and (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Austenitic Stainless Steel, (M) Martensitic Stainless Steel, (S) Heat-Resistant Alloy, (S) Titanium Alloy

Specifications

Series
MEW
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Precipitation Hardened Stainless Steel
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
PR1535
Thickness
5.60 mm
Style
LOMU
Application
Facing, Helical Milling, Shouldering, Slotting
Thickness (Decimal)
0.22
Shape
90 Degree Rectangle
Insert Holding Method
Screw
Old Material Number
8838164
ANSI Part Number
LOMU150508ERGMPR1535
ISO Part Number
LOMU150508ER-GM
Rake
Positive
Number of Cutting Edges
4
Insert Size
150508
Chipbreaker
ER-GM
Cutting Range
Roughing
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/M-Four_MEW_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
