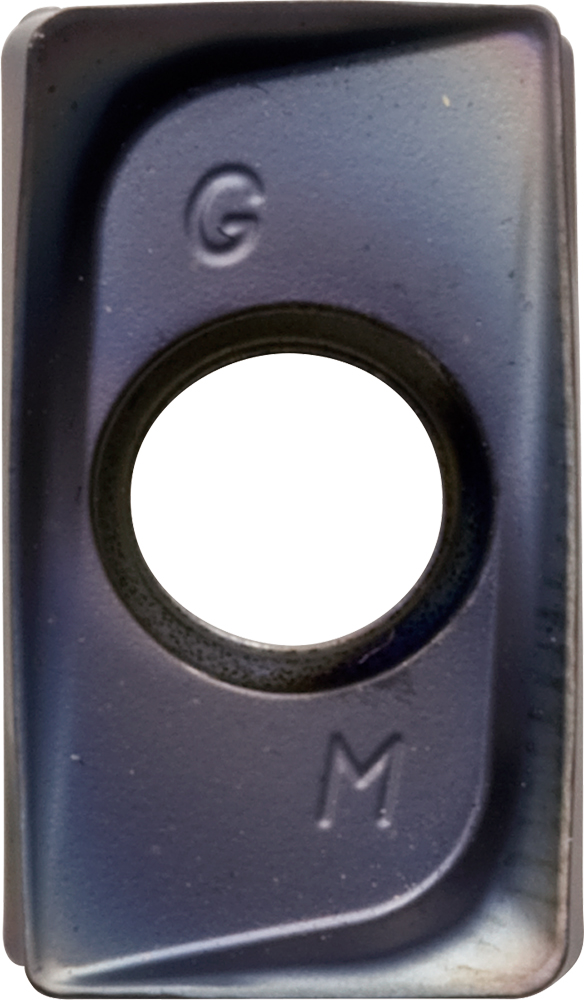

Kyocera LOMU 150516ERGM PR1835 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLU00084
$33.97
Kyocera LOMU 150516ERGM PR1835 Grade PVD Carbide, 90 Degree Rectangle, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (M) Austenitic Stainless Steel, (M) Precipitation Hardened Stainless Steel, (S) Titanium Alloy and (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Martensitic Stainless Steel

Specifications

Series
MEW
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Austenitic Stainless Steel|(M) Precipitation Hardened Stainless Steel|(S) Titanium Alloy
Corner Radius
1.60 mm
Corner Radius (Fractional)
1/16
Grade
PR1835
Thickness
5.60 mm
Style
LOMU
Application
Facing, Helical Milling, Shouldering, Slotting
Thickness (Decimal)
0.22
Shape
90 Degree Rectangle
Insert Holding Method
Screw
ANSI Part Number
LOMU150516ERGMPR1835
ISO Part Number
LOMU150516ER-GM
Rake
Positive
Number of Cutting Edges
4
Insert Size
150516
Chipbreaker
ER-GM
Cutting Range
Roughing
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/M-Four_MEW_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
