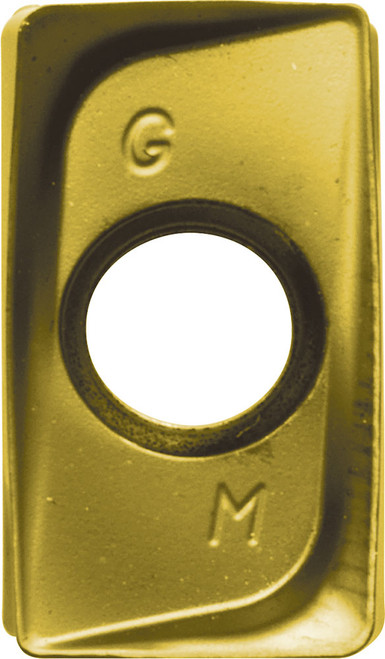

Kyocera LOMU 150520ERGM CA6535 Grade CVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMA04386
$31.96
Kyocera LOMU 150520ERGM CA6535 Grade CVD Carbide, Rectangle, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (M) Martensitic Stainless Steel, (S) Heat-Resistant Alloy

Specifications

Series
MEW
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(M) Martensitic Stainless Steel|(S) Heat-Resistant Alloy
Corner Radius
2 mm
Corner Radius (Fractional)
5/64
Grade
CA6535
Thickness
5.60 mm
Style
LOMU
Application
Facing, Helical Milling, Shouldering, Slotting
Thickness (Decimal)
0.22
Shape
90 Degree Rectangle
Insert Holding Method
Screw
Old Material Number
8839343
ANSI Part Number
LOMU150520ERGMCA6535
ISO Part Number
LOMU150520ER-GM
Rake
Positive
Number of Cutting Edges
4
Insert Size
150520
Chipbreaker
ER-GM
Cutting Range
Roughing
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/M-Four_MEW_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
