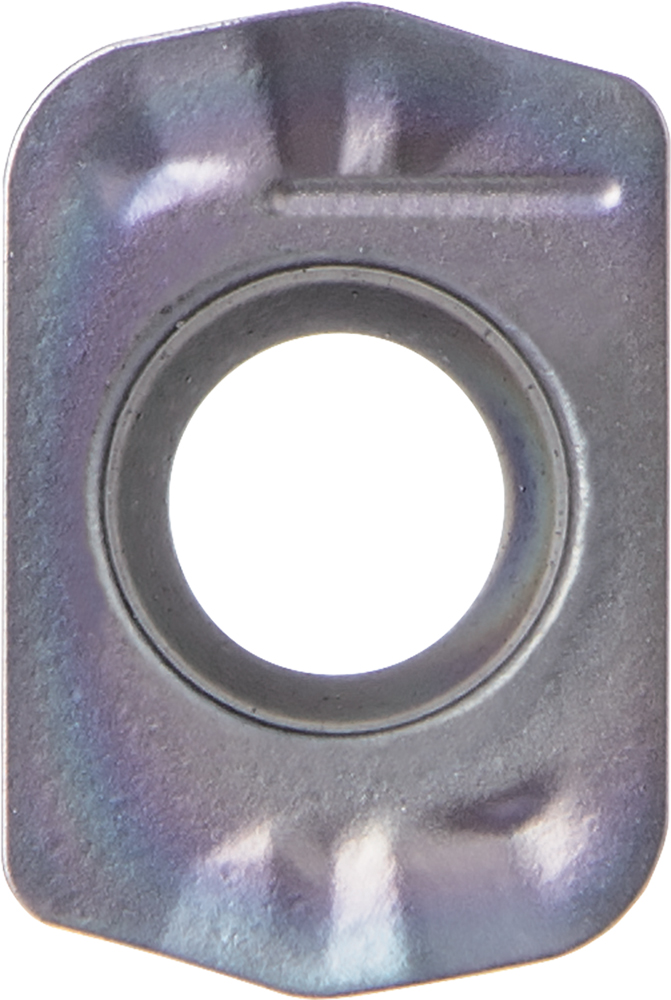

Kyocera LPGT 010210ERGM PR1535 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC04450
$21.82
Kyocera LPGT 010210ERGM PR1535 Grade PVD Carbide, Rectangle, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (M) Austenitic Stainless Steel, (M) Precipitation Hardened Stainless Steel, (S) Titanium Alloy and (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Martensitic Stainless Steel, (S) Heat-Resistant Alloy

Specifications

Series
MFHO
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Austenitic Stainless Steel|(M) Precipitation Hardened Stainless Steel|(S) Titanium Alloy
Corner Radius
1 mm
Grade
PR1535
Thickness
2.19 mm
Style
LPGT
Application
Facing, Helical Milling, High Feed, Plunging, Pocketing, Ramping, Shouldering, Slotting
Thickness (Decimal)
0.09
Shape
90 Degree Rectangle
Insert Holding Method
Screw
Insert Length (Decimal)
0.25
Insert Length (Metric)
6.26
Old Material Number
8846773
ANSI Part Number
LPGT010210ERGMPR1535
ISO Part Number
LPGT010210ER-GM
Rake
Positive
Number of Cutting Edges
2
Insert Size
010210
Chipbreaker
ER-GM
Cutting Range
Roughing
Corner Radius (Decimal)
0.04
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFH-Raptor_W.pdf
Kyocera LPGT 010210ERGM PR1535 Grade PVD Carbide, Indexable Milling Insert
$21.82
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
