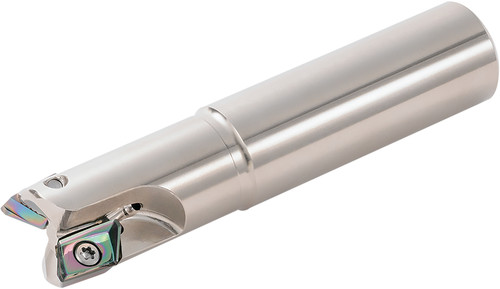

Kyocera MEAS 28S25132T Standard Length Shank, 90 Degree End Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08429
$785.21
Kyocera MEAS 28S25132T Standard Length, Cylindrical Shank, 2 Flute, 90 Degree End Mill with a 28.00mm Cutting Diameter for Shouldering, Facing, Slotting, Ramping, Contouring, Pocketing, Helical Milling, Plunging Applications

Specifications

Series
MEAS
Unit of Measure
Metric
Shank Type
Standard Length
Material
Steel
Cutting Diameter (Decimal)
1.10
Cutting Diameter (Metric)
28
Weldon Flat
No
Cutting Diameter
28 mm
Number of Flutes
2
Application
Contouring, Facing, Helical Milling, Plunging, Pocketing, Ramping, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8863872
ANSI Part Number
MEAS28S25132T
ISO Part Number
MEAS28-S25-13-2T
Material Group / Grade
GR99
Tool Style
MEAS
Cutting Diameter Minimum (Decimal)
1.10
Number of Inserts
2
Hand of Holder
Right
Max. Depth Of Cut
12 mm
Maximum Depth of Cut (Decimal)
0.47
Cutting Diameter Minimum (Metric)
28
Cutting Maximum (Decimal)
1.10
Connection Diameter (Decimal)
0.98
Connection Diameter (Metric)
25
Tool Entering Angle
90 degrees
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEAS_Milling_for_Aluminum.pdf
Kyocera MEAS 28S25132T Standard Length Shank, 90 Degree End Mill
$785.21
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
