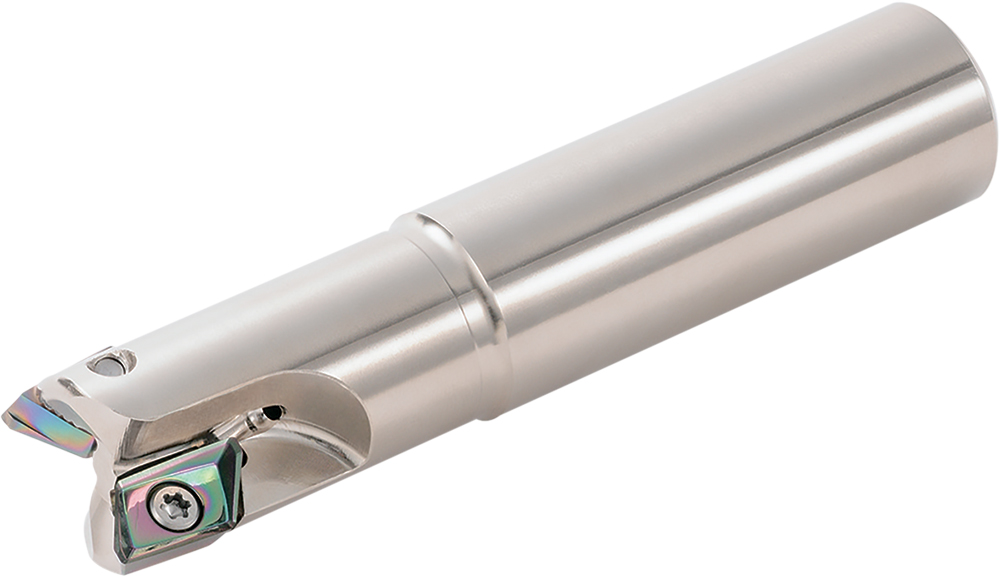

Kyocera MEAS 32S32132T200 Long Length Shank, 90 Degree End Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08434
$858.25
Kyocera MEAS 32S32132T200 Long Length, Cylindrical Shank, 2 Flute, 90 Degree End Mill with a 32.00mm Cutting Diameter for Shouldering, Facing, Slotting, Ramping, Contouring, Pocketing, Helical Milling, Plunging Applications

Specifications

Series
MEAS
Unit of Measure
Metric
Shank Type
Long Length
Material
Steel
Cutting Diameter (Decimal)
1.26
Cutting Diameter (Metric)
32
Weldon Flat
No
Cutting Diameter
32 mm
Number of Flutes
2
Application
Contouring, Facing, Helical Milling, Plunging, Pocketing, Ramping, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8863878
ANSI Part Number
MEAS32S32132T200
ISO Part Number
MEAS32-S32-13-2T-200
Material Group / Grade
GR99
Tool Style
MEAS
Cutting Diameter Minimum (Decimal)
1.26
Number of Inserts
2
Hand of Holder
Right
Max. Depth Of Cut
12 mm
Maximum Depth of Cut (Decimal)
0.47
Cutting Diameter Minimum (Metric)
32
Cutting Maximum (Decimal)
1.26
Connection Diameter (Decimal)
1.26
Connection Diameter (Metric)
32
Tool Entering Angle
90 degrees
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEAS_Milling_for_Aluminum.pdf
