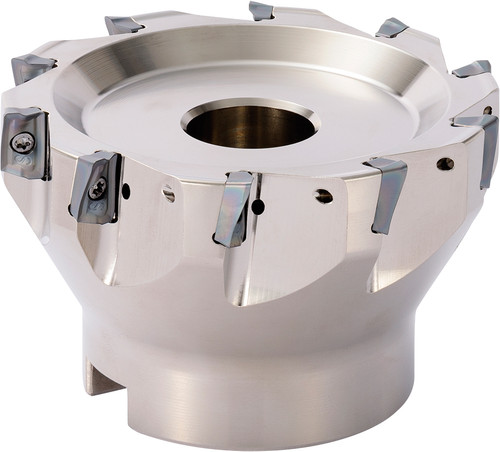

Kyocera MEC 080R1110T Inch Bore Diameter, 90 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN03407
$1,266.00
Kyocera MEC 080R1110T Inch Bore Diameter, Fine Pitch, 10 Flute, 90 Degree Face Mill with a 80.00mm Cutting Diameter for Shouldering, Facing, Slotting, Helical Milling, Plunging Applications

Specifications

Series
MEC
Unit of Measure
Metric
Material
Steel
Cutting Diameter (Decimal)
3.15
Cutting Diameter (Metric)
80
Cutting Diameter
80 mm
Number of Flutes
10
Application
Facing, Helical Milling, Plunging, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8832579
ANSI Part Number
MEC080R1110T
ISO Part Number
MEC080R-11-10T
Material Group / Grade
GR99
Tool Style
MEC
Cutting Diameter Minimum (Decimal)
3.15
Number of Inserts
10
Hand of Holder
Right
Max. Depth Of Cut
10 mm
Maximum Depth of Cut (Decimal)
0.39
Cutting Diameter Minimum (Metric)
80
Cutting Maximum (Decimal)
3.15
Connection Bore Diameter (Decimal)
1
Connection Bore Diameter (Metric)
25.40
Contact Surface Diameter Machine Side (Decimal)
2.07
Contact Surface Diameter Machine Side (Metric)
52.50
Tool Entering Angle
90 degrees
Cutter Pitch
Fine Pitch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
