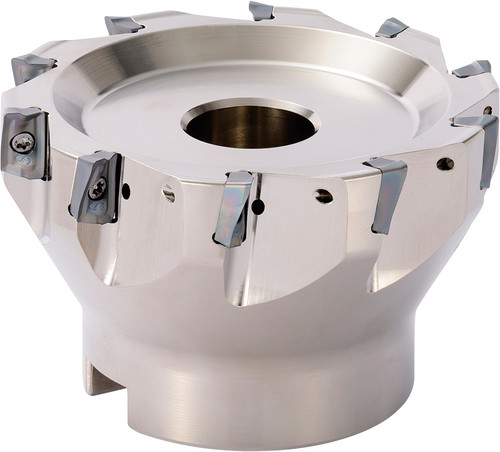

Kyocera MEC 3000R176T Inch Bore Diameter, 90 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-8819515
$906.85
Kyocera MEC 3000R176T Inch Bore Diameter, Standard Pitch, 6 Flute, 90 Degree Face Mill with a 3.0000" Cutting Diameter for Shouldering, Facing, Slotting, Helical Milling, Plunging Applications

Specifications

Series
MEC
Unit of Measure
Imperial
Material
Steel
Cutting Diameter (Decimal)
3
Cutting Diameter (Metric)
76.20
Cutting Diameter
3 Inch
Number of Flutes
6
Application
Facing, Helical Milling, Plunging, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8607053
ANSI Part Number
MEC3000R176T
ISO Part Number
MEC3000R-17-6T
Material Group / Grade
GR99
Tool Style
MEC
Cutting Diameter Minimum (Decimal)
3
Number of Inserts
6
Hand of Holder
Right
Max. Depth Of Cut
0.62 Inch
Maximum Depth of Cut (Metric)
15.70
Cutting Diameter Minimum (Metric)
76.20
Cutting Maximum (Metric)
76.20
Connection Bore Diameter (Decimal)
1
Connection Bore Diameter (Metric)
25.40
Contact Surface Diameter Machine Side (Decimal)
1.97
Contact Surface Diameter Machine Side (Metric)
50
Tool Entering Angle
90 degrees
Cutter Pitch
Standard Pitch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
