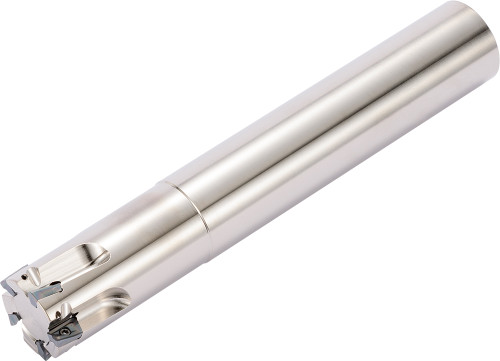

Kyocera MEC 32S3211T5 Standard Length Shank, 90 Degree End Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08258
$559.44
Kyocera MEC 32S3211T5 Standard Length, Cylindrical Shank, 5 Flute, 90 Degree End Mill with a 32.00mm Cutting Diameter for Shouldering, Facing, Slotting, Ramping, Helical Milling, Plunging Applications

Specifications

Series
MEC
Unit of Measure
Metric
Shank Type
Standard Length
Material
Steel
Cutting Diameter (Decimal)
1.26
Cutting Diameter (Metric)
32
Weldon Flat
No
Cutting Diameter
32 mm
Number of Flutes
5
Application
Facing, Helical Milling, Plunging, Ramping, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8848959
ANSI Part Number
MEC32S3211T5
ISO Part Number
MEC32-S32-11T-5
Material Group / Grade
GR99
Tool Style
MEC
Cutting Diameter Minimum (Decimal)
1.26
Number of Inserts
5
Hand of Holder
Right
Max. Depth Of Cut
10 mm
Maximum Depth of Cut (Decimal)
0.39
Cutting Diameter Minimum (Metric)
32
Cutting Maximum (Decimal)
1.26
Connection Diameter (Decimal)
1.26
Connection Diameter (Metric)
32
Tool Entering Angle
90 degrees
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
