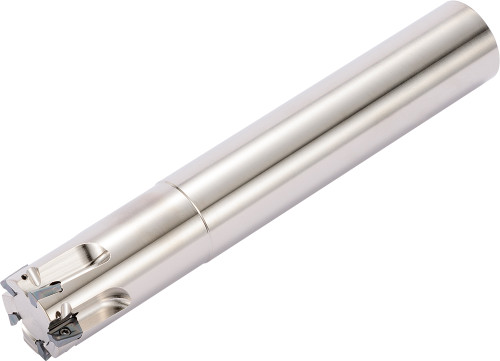

Kyocera MEC 35S3225011T Long Length Shank, 90 Degree End Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN03313
$660.68
Kyocera MEC 35S3225011T Long Length, Cylindrical Shank, 2 Flute, 90 Degree End Mill with a 35.00mm Cutting Diameter for Shouldering, Facing, Slotting, Ramping, Helical Milling, Plunging Applications

Specifications

Series
MEC
Unit of Measure
Metric
Shank Type
Long Length
Material
Steel
Cutting Diameter (Decimal)
1.38
Cutting Diameter (Metric)
35
Weldon Flat
No
Cutting Diameter
35 mm
Number of Flutes
2
Application
Facing, Helical Milling, Plunging, Ramping, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8829583
ANSI Part Number
MEC35S3225011T
ISO Part Number
MEC35-S32-250-11T
Material Group / Grade
GR99
Tool Style
MEC
Cutting Diameter Minimum (Decimal)
1.38
Number of Inserts
2
Hand of Holder
Right
Max. Depth Of Cut
10 mm
Maximum Depth of Cut (Decimal)
0.39
Cutting Diameter Minimum (Metric)
35
Cutting Maximum (Decimal)
1.38
Connection Diameter (Decimal)
1.26
Connection Diameter (Metric)
32
Tool Entering Angle
90 degrees
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
