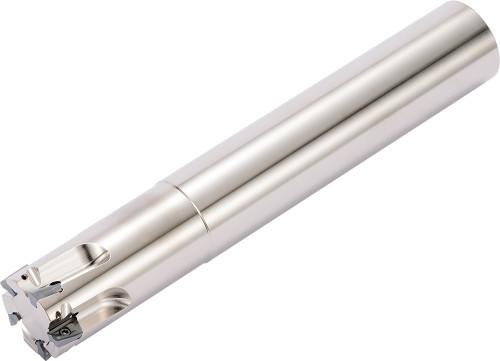

Kyocera 90° Indexable End Mill MEC40S3211T, manufacturer part number THN03218.
Specifications: Cutting Diameter: 40.00 mm (1.5748 in); Maximum Depth of Cut: 10.00 mm (0.3937 in); Hand Direction: Right; Number of Flutes: 5; Insert Holding Method: Screw; Old Material Number: 8820927; Cutting Diameter Minimum: 40.00 mm (1.5748 in); Number of Inserts: 5; Connection Diameter: 32.00 mm (1.2598 in); Tool Entering Angle: 90 degrees; Cutting Diameter Maximum: 40.00 mm (1.5748 in); Insert Shape: Parallelogram; Coolant Option: Internal Coolant; Insert Style: MEC; ANSI Designation: MEC40S3211T; ISO Designation: MEC40-S32-11T; Machining Operations: Facing, Helical Milling, Plunging, Ramping, Shouldering, Slotting; Length Type: Standard.
Material: Steel. Series: MEC. Unit of measure: Metric.
