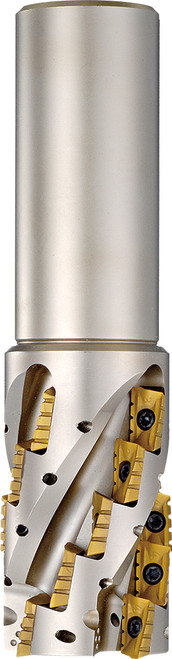

Kyocera MECH 032S321152T (MEC Series), Standard Length, Helical End Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN03810
$1,064.21
Kyocera MECH 032S321152T (MEC Series), Standard Length, Helical End Mill with a 32.00mm Cutting Diameter for Shouldering, Slotting, Facing Applications

Specifications

Series
MECH
Unit of Measure
Metric
Shank Type
Standard Length
Material
Steel
Cutting Diameter (Decimal)
1.26
Cutting Diameter (Metric)
32
Weldon Flat
No
Cutting Diameter
32 mm
Number of Flutes
2
Application
Facing, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8825941
ANSI Part Number
MECH032S321152T
ISO Part Number
MECH032-S32-11-5-2T
Material Group / Grade
GR99
Tool Style
MECH
Cutting Diameter Minimum (Decimal)
1.26
Number of Inserts
10
Hand of Holder
Right
Max. Depth Of Cut
46 mm
Maximum Depth of Cut (Decimal)
1.81
Cutting Diameter Minimum (Metric)
32
Cutting Maximum (Decimal)
1.26
Connection Diameter (Decimal)
1.26
Connection Diameter (Metric)
32
Tool Entering Angle
90 degrees
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
