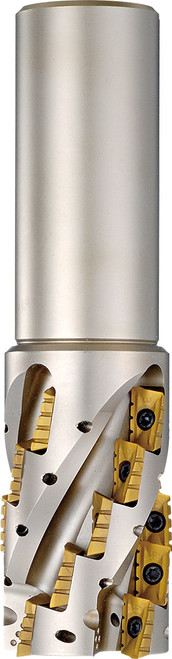

Kyocera MECH 050S421174T (MEC Series), Standard Length, Helical End Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN03840
$1,665.65
Kyocera MECH 050S421174T (MEC Series), Standard Length, Helical End Mill with a 50.00mm Cutting Diameter for Shouldering, Facing Applications

Specifications

Series
MECH
Unit of Measure
Metric
Shank Type
Standard Length
Material
Steel
Cutting Diameter (Decimal)
1.97
Cutting Diameter (Metric)
50
Weldon Flat
No
Cutting Diameter
50 mm
Number of Flutes
4
Application
Facing, Shouldering
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8824451
ANSI Part Number
MECH050S421174T
ISO Part Number
MECH050-S42-11-7-4T
Material Group / Grade
GR99
Tool Style
MECH
Cutting Diameter Minimum (Decimal)
1.97
Number of Inserts
28
Hand of Holder
Right
Max. Depth Of Cut
64 mm
Maximum Depth of Cut (Decimal)
2.52
Cutting Diameter Minimum (Metric)
50
Cutting Maximum (Decimal)
1.97
Connection Diameter (Decimal)
1.65
Connection Diameter (Metric)
42
Tool Entering Angle
90 degrees
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
Kyocera MECH 050S421174T (MEC Series), Standard Length, Helical End Mill
$1,665.65
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
