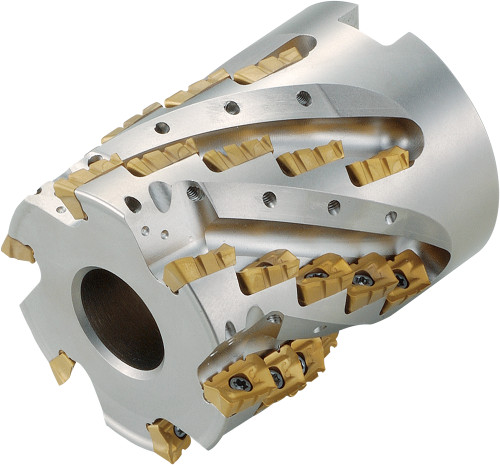

Kyocera MECH 080R1746T (MEC Series), Helical Shell Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN04008
$3,174.70
Kyocera MECH 080R1746T (MEC Series), Helical Shell Mill with a 80.00mm Cutting Diameter for Shouldering, Facing Applications

Specifications

Series
MECH
Unit of Measure
Metric
Material
Steel
Cutting Diameter (Decimal)
3.15
Cutting Diameter (Metric)
80
Cutting Diameter
80 mm
Number of Flutes
6
Application
Facing, Shouldering
Insert Holding Method
Screw
Coolant Through
No
Old Material Number
8828745
ANSI Part Number
MECH080R1746T
ISO Part Number
MECH080R-17-4-6T
Material Group / Grade
GR99
Tool Style
MECH
Cutting Diameter Minimum (Decimal)
3.15
Number of Inserts
24
Hand of Holder
Right
Max. Depth Of Cut
59 mm
Maximum Depth of Cut (Decimal)
2.32
Cutting Diameter Minimum (Metric)
80
Cutting Maximum (Decimal)
3.15
Connection Bore Diameter (Decimal)
1.25
Connection Bore Diameter (Metric)
31.75
Tool Entering Angle
90 degrees
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
