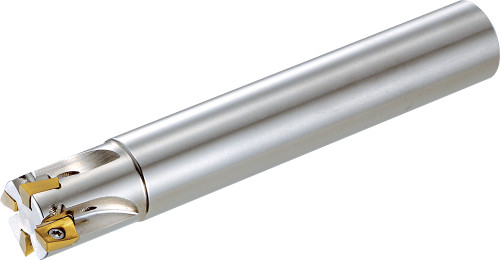

Kyocera MECX 0750S625074T Standard Length Shank, 90 Degree End Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN80010
$453.44
Kyocera MECX 0750S625074T Standard Length, Cylindrical Shank, 4 Flute, 90 Degree End Mill with a 0.7500" Cutting Diameter for Shouldering, Facing, Slotting, Ramping, Helical Milling Applications

Specifications

Series
MECX
Unit of Measure
Imperial
Shank Type
Standard Length
Material
Steel
Cutting Diameter (Decimal)
0.75
Cutting Diameter (Metric)
19.05
Weldon Flat
No
Cutting Diameter
0.75 Inch
Number of Flutes
4
Application
Facing, Helical Milling, Ramping, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8821866
ANSI Part Number
MECX0750S625074T
ISO Part Number
MECX0750-S625-07-4T
Material Group / Grade
GR99
Tool Style
MECX
Cutting Diameter Minimum (Decimal)
0.75
Number of Inserts
4
Hand of Holder
Right
Max. Depth Of Cut
0.24 Inch
Maximum Depth of Cut (Metric)
6
Cutting Diameter Minimum (Metric)
19.05
Cutting Maximum (Metric)
19.05
Connection Diameter (Decimal)
0.63
Connection Diameter (Metric)
15.88
Tool Entering Angle
90 degrees
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
Kyocera MECX 0750S625074T Standard Length Shank, 90 Degree End Mill
$453.44
