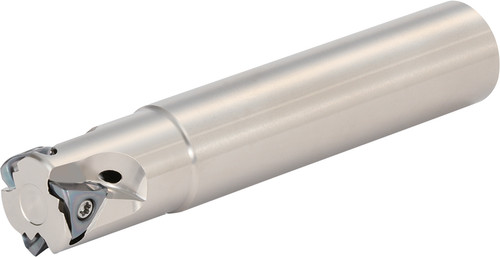

Kyocera MEV 1000W750063T Standard Length Shank, 90 Degree End Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08554
$499.71
Kyocera MEV 1000W750063T Standard Length, Weldon Shank, 3 Flute, 90 Degree End Mill with a 1.0000" Cutting Diameter for Shouldering, Facing, Slotting, Ramping, Pocketing, Helical Milling, Plunging Applications

Specifications

Series
MEV
Unit of Measure
Imperial
Shank Type
Standard Length
Material
Steel
Cutting Diameter (Decimal)
1
Cutting Diameter (Metric)
25.40
Weldon Flat
Yes
Cutting Diameter
1 Inch
Number of Flutes
3
Application
Facing, Helical Milling, Plunging, Pocketing, Ramping, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8609420
ANSI Part Number
MEV1000W750063T
ISO Part Number
MEV1000-W750-06-3T
Material Group / Grade
GR99
Tool Style
MEV
Cutting Diameter Minimum (Decimal)
1
Number of Inserts
3
Hand of Holder
Right
Max. Depth Of Cut
0.24 Inch
Maximum Depth of Cut (Metric)
6
Cutting Diameter Minimum (Metric)
25.40
Cutting Maximum (Metric)
25.40
Connection Diameter (Decimal)
0.75
Connection Diameter (Metric)
19.05
Tool Entering Angle
90 degrees
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEV_High_Performance_Milling.pdf
