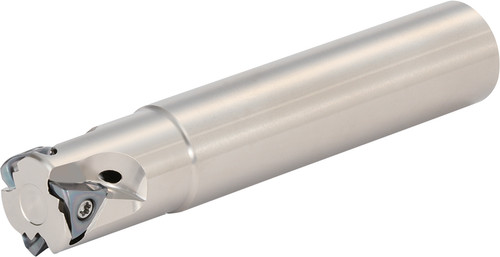

Kyocera MEV 1250W125064T Standard Length Shank, 90 Degree End Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08557
$601.50
Kyocera MEV 1250W125064T Standard Length, Weldon Shank, 4 Flute, 90 Degree End Mill with a 1.2500" Cutting Diameter for Shouldering, Facing, Slotting, Ramping, Pocketing, Helical Milling, Plunging Applications

Specifications

Series
MEV
Unit of Measure
Imperial
Shank Type
Standard Length
Material
Steel
Cutting Diameter (Decimal)
1.25
Cutting Diameter (Metric)
31.75
Weldon Flat
Yes
Cutting Diameter
1.25 Inch
Number of Flutes
4
Application
Facing, Helical Milling, Plunging, Pocketing, Ramping, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8609423
ANSI Part Number
MEV1250W125064T
ISO Part Number
MEV1250-W125-06-4T
Material Group / Grade
GR99
Tool Style
MEV
Cutting Diameter Minimum (Decimal)
1.25
Number of Inserts
4
Hand of Holder
Right
Max. Depth Of Cut
0.24 Inch
Maximum Depth of Cut (Metric)
6
Cutting Diameter Minimum (Metric)
31.75
Cutting Maximum (Metric)
31.75
Connection Diameter (Decimal)
1.25
Connection Diameter (Metric)
31.75
Tool Entering Angle
90 degrees
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEV_High_Performance_Milling.pdf
