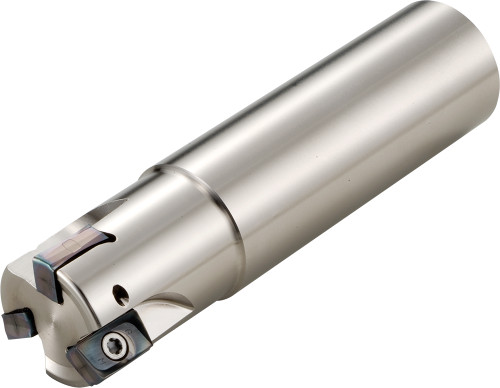

Kyocera MEW 0750W750102T Standard Length Shank, 90 Degree End Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN05107
$452.50
Kyocera MEW 0750W750102T Standard Length, Weldon Shank, 2 Flute, 90 Degree End Mill with a 0.7500" Cutting Diameter for Shouldering, Facing, Slotting, Plunging Applications

Specifications

Series
MEW
Unit of Measure
Imperial
Shank Type
Standard Length
Material
Steel
Cutting Diameter (Decimal)
0.75
Cutting Diameter (Metric)
19.05
Weldon Flat
Yes
Cutting Diameter
0.75 Inch
Number of Flutes
2
Application
Facing, Plunging, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8606151
ANSI Part Number
MEW0750W750102T
ISO Part Number
MEW0750-W750-10-2T
Material Group / Grade
GR99
Tool Style
MEW
Cutting Diameter Minimum (Decimal)
0.75
Number of Inserts
2
Hand of Holder
Right
Max. Depth Of Cut
0.39 Inch
Maximum Depth of Cut (Metric)
10
Cutting Diameter Minimum (Metric)
19.05
Cutting Maximum (Metric)
19.05
Connection Diameter (Decimal)
0.75
Connection Diameter (Metric)
19.05
Tool Entering Angle
90 degrees
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/M-Four_MEW_W.pdf
