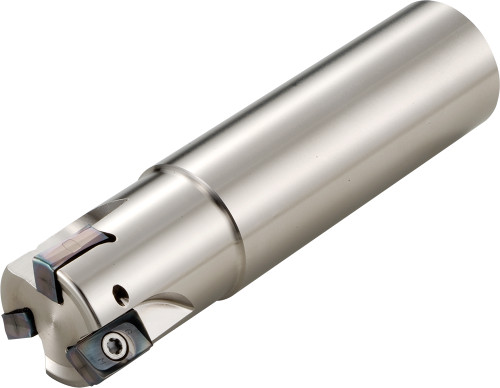

Kyocera MEW 1000W100102T Standard Length Shank, 90 Degree End Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN05115
$508.12
Kyocera MEW 1000W100102T Standard Length, Weldon Shank, 2 Flute, 90 Degree End Mill with a 1.0000" Cutting Diameter for Shouldering, Facing, Slotting, Plunging Applications

Specifications

Series
MEW
Unit of Measure
Imperial
Shank Type
Standard Length
Material
Steel
Cutting Diameter (Decimal)
1
Cutting Diameter (Metric)
25.40
Weldon Flat
Yes
Cutting Diameter
1 Inch
Number of Flutes
2
Application
Facing, Plunging, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8606154
ANSI Part Number
MEW1000W100102T
ISO Part Number
MEW1000-W100-10-2T
Material Group / Grade
GR99
Tool Style
MEW
Cutting Diameter Minimum (Decimal)
1
Number of Inserts
2
Hand of Holder
Right
Max. Depth Of Cut
0.39 Inch
Maximum Depth of Cut (Metric)
10
Cutting Diameter Minimum (Metric)
25.40
Cutting Maximum (Metric)
25.40
Connection Diameter (Decimal)
1
Connection Diameter (Metric)
25.40
Tool Entering Angle
90 degrees
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/M-Four_MEW_W.pdf
